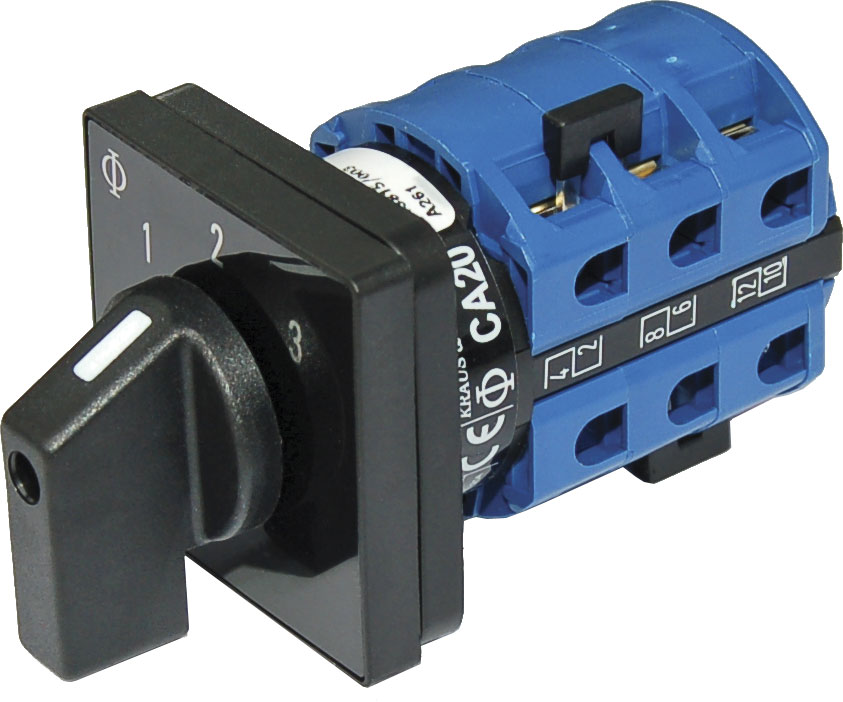

  Blue Sea Rotary Switch 120VAC 30 Amp Off + 3 Position
Click to enlarge

Blue Sea Rotary Switch 120VAC 30 Amp Off + 3 Position

Item #: BLU9010-BSS


Quantity:

Out of stock
12%

List Price:

$189.99

Price:

$167.99



Backordered
No restocking fees on return.

Click to verify BBB accreditation and to see a BBB report.

Details:

Blue Sea Systems AC Rotary Switch - OFF + 3 Positions 120V AC 30A

Model: 9010-BSS
  • Switches 3 - 120 or 230 Volt AC sources
  • Compact solution when circuit protection is provided elsewhere
  • Allows connecting one of two different AC sources to one circuit
  • Mounts in panels up to 0.16" (4.00mm) thick
  • Mounts in panels up to 0.16" (4.00mm) thick
  • Heavy duty industrial rated switch
  • Intuitive function - One hand operation
  • UL listed
Specifications
Positions3 + OFF
Source Selection3
Nominal Voltage120v
Poles2
Load Circuits Out1
Maximum Amperage Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.30A
Maximum Voltage600V AC
Source In3
Dimensions hxwhd1.89in x 1.89in x 2.41in
