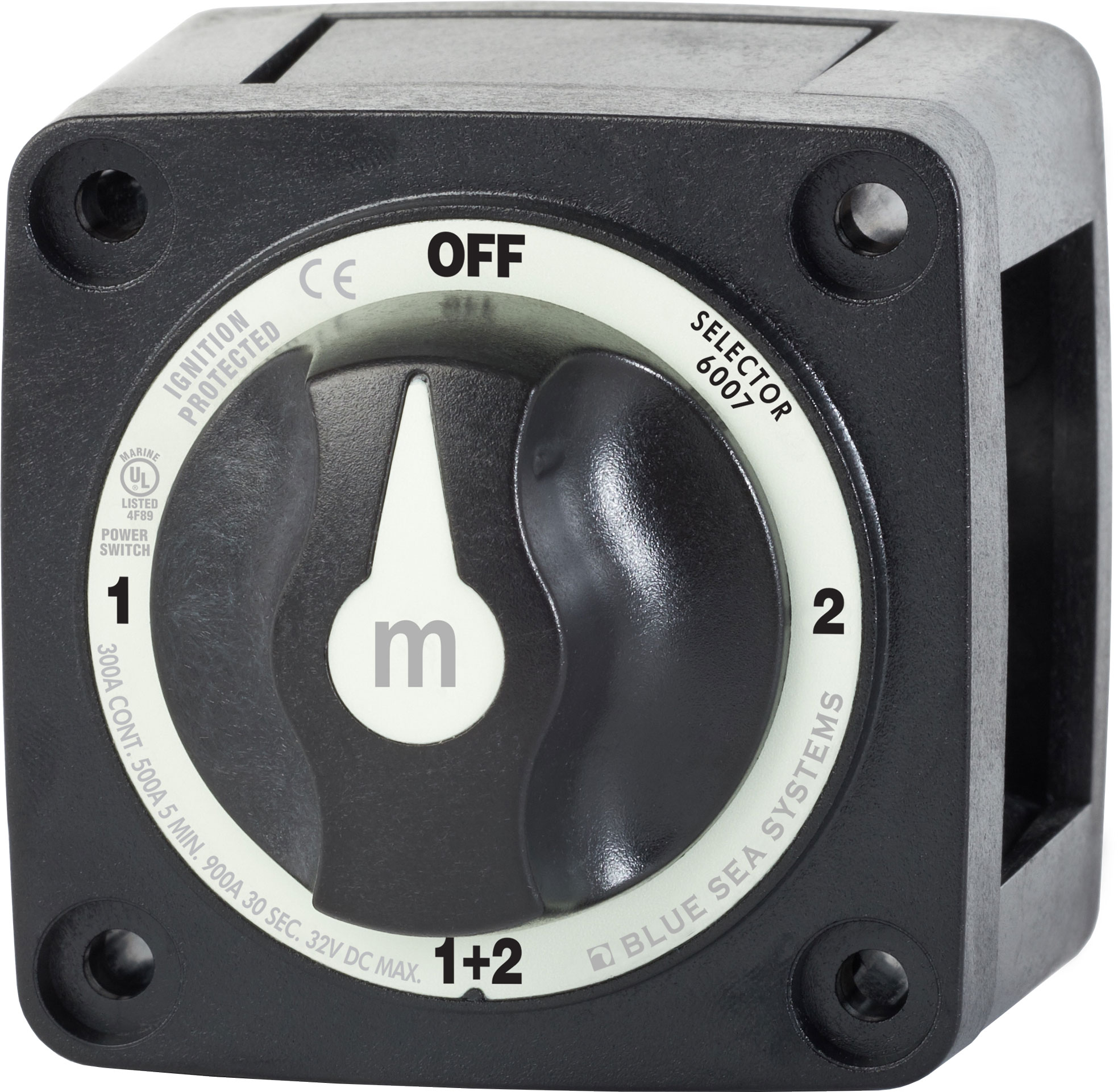

Blue Sea M-SERIES Battery Switch On/Offor On/Both with Knob Black

Click to enlarge

Details:

Blue Sea Systems m-Series Mini Selector Battery Switch - Black

Model: 6007200-BSS

Tin-plated copper studs for maximum conductivity and corrosion resistance
Studs accept 3/8" (M10) ring terminals
7/8" (22mm) stud length accepts multiple cable terminals
Blue Sea Systems one-piece terminal stud design never loosens over time
Isolating cover with snap-on sections protects rear contacts
Case design allows surface, rear, or front panel mounting options
Waterproof — rated IP66 from water projected in powerful jets
One-piece stainless flange nuts ensure safe and secure connections
Breakout tabs allow wire access in any direction
Ignition protected—safe for installation aboard gasoline powered boats
Make before break contact design allows switching between battery banks without power interruption

Switches isolated battery banks to all loads or combines battery banks to all loads

Specifications

Switch Type	Selector 4 Position
Color	Black
Switch Positions	4
Battery Combine	Yes
Alternator Field Disconnect	No
Maximum Voltage	32vDC
Stud Size	3/8"
Terminal Stud Torque	120 in-lb (13.56 Nm)
Continuous Rating	300A
Intermittent Rating	500A (5 min)
Cranking Rating 30 sec	900A
Battery Inputs	2
Cable Clearance For 4/0 AWG Cables	1.12in (28.45 mm)
Cable Size to Meet Ratings	4/0 AWG (120mm )
Mounting Holes	Accept #10 Screw
Stud Material	Tinned Copper
Stud Torque	120 in-lb (13.56 Nm)
Terminal Stud Size	3/8" - 16 (M10)
