Drop in replacement for traditional rectangular displays
Automatically detects 1-3 battery banks
AC charge indication verifies that power is connected and the battery charger is charging
Plain language fault indication relays if there is a fault with the battery charger
Dip switch selectable screen configuration allows the display to show voltage bar graphs or the P12 Battery Charger summary screen
Displays voltage bar graphs even when AC power is not present
Optional standby mode shuts off screen after 4 hours of inactivity
Automatic ON based on motion with integrated knock sensor
Bright, daylight readable, OLED display

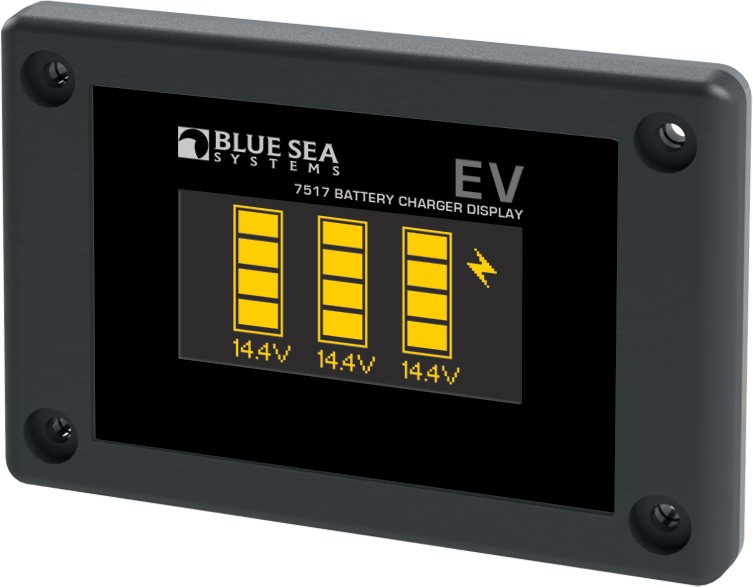

The EV Battery Charger Display provides two options to monitor your battery banks. It can display a graphical representation of voltage for 1 to 3 battery banks with or without connection to a P12 Battery Charger. When connected to a P12 Battery Charger it can display the charger’s Summary screen, displaying voltage, current charging stage, and faults from the charger.
Specifications
Accuracy
+/- 1% at 36 Volts DC
Battery Inputs
3 with common reference
Display Size
55mm x 28mm
Display Type
Yellow OLED
Input Voltage Range
6-36V DC
Maximum Current Draw
50mA
Minimum Current Draw
<1mA in Standby Mode
What's in the Box:
EV Battery Charger Display
Mounting Gasket
Four Position Connector
25ft (7.8m) Cat5e Cable
