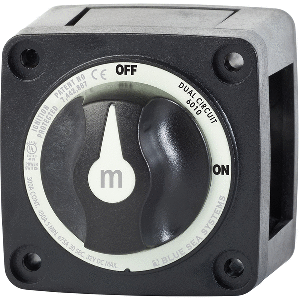

Simultaneously switches two isolated battery banks.
Switch Type: Dual Circuit Color:Black Switch Positions:2 Battery Combine:No Alternator Field Disconnect: No Maximum Voltage:32V DC Continuous Rating :300A Intermittent Rating :450A (5 min) Cranking Rating 10 sec: 1000A Cranking Rating 1 min: 650A Battery Inputs:2 Cable Clearance For 4/0 AWG Cables:1.12in (28.45 mm) Cable Size to Meet Ratings:4/0 AWG (120mm²) Mounting Holes: Accept #10 Screw Terminal Stud Size:3/8"-16 (M10) Terminal Stud Torque:120 in-lb (13.56 Nm) Weight:0.80lb (0.36 kg)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
