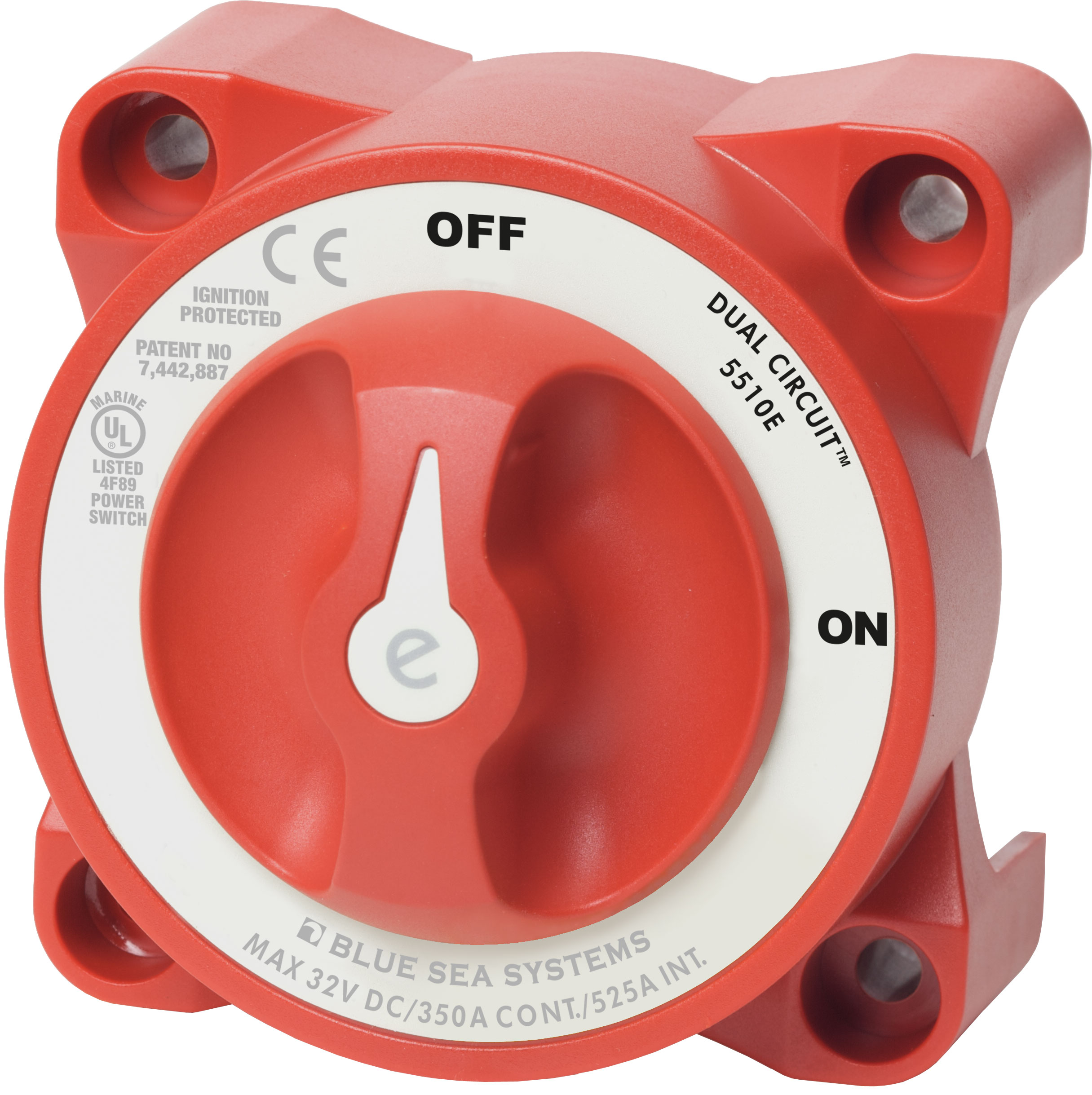

  Blue Sea E-Series Battery Switch ON-OFF Dual Circuit
Click to enlarge

Blue Sea E-Series Battery Switch ON-OFF Dual Circuit

Item #: BLU5510E-BSS


Quantity:

32%

List Price:

$97.99

Price:

$66.99



Flat Rate $10.95 Shipping Available!

In Stock - Ships the next business day.
No restocking fees on return.

Click to verify BBB accreditation and to see a BBB report.

Details:

Blue Sea Systems e-Series Dual Circuit Battery Switch

Model: 5510E-BSS
  • 350 Amps continuous rating for inboard gasoline or diesel engines.
  • Tin-plated copper studs for maximum conductivity and corrosion resistance
  • Accepts up to 4/0 AWG battery cables
  • Studs accepts 3/8" (M10) ring terminals
  • 7/8" (22mm) stud length accepts multiple cable terminals
  • Blue Sea Systems one-piece terminal stud design never loosens over time
  • Fits most Perko and Guest low amperage battery switch hole patterns
  • Case design allows surface, rear, or front panel mounting options
  • Tactile indicator conveys knob position by feel
  • Waterproof — rated IP66 from water projected in powerful jets
  • Ignition protected—safe for installation aboard gasoline powered boats
Specifications
Switch TypeDual Circuit
ColorRed
Switch Positions2
Battery CombineNo
Alternator Field DisconnectNo
Maximum Voltage32V DC
Terminal Stud Torque140 in-lb (15.82 Nm)
Continuous Rating350A
Intermittent Rating525A (5 min)
Cranking Rating 30 sec700A per circuit
Battery Inputs2
Cable Clearance For 4/0 AWG Cables1.10in (27.94 mm)
Cable Size to Meet Ratings4/0 AWG (120mm )
Mounting HolesAccept 1/4" (M6) Screw
Stud MaterialTinned Copper
Terminal Stud Size3/8" - 16 (M10)
