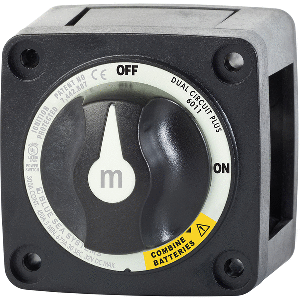

m-Series Mini Dual Circuit Plus Battery Switch - Black
Simultaneously switches two isolated battery banks or combines battery banks to all loads.
Make before break contact design allows switching between battery banks without power interruption.
Switch Type: Dual Circuit Plus Color:Black Switch Positions:3 Battery Combine:Yes Alternator Field Disconnect: No Maximum Voltage:32V DC Continuous Rating :300A Intermittent Rating :450A (5 min) Cranking Rating 10 sec: 1000A Cranking Rating 1 min: 650A Battery Inputs:2 Cable Clearance For 4/0 AWG Cables:1.12in (28.45 mm) Cable Size to Meet Ratings:4/0 AWG (120mm²) Mounting Holes: Accept #10 Screw Terminal Stud Size:3/8"-16 (M10) Terminal Stud Torque:120 in-lb (13.56 Nm) Weight:0.80lb (0.36 kg)
