Silver alloy contacts provide high reliability for switching live loads

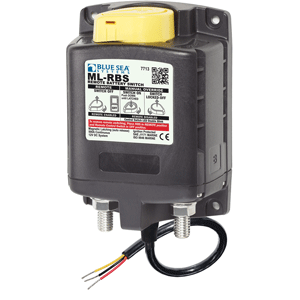

Auto Releasing ML-Series Remote Battery Switch with SPST Switching Provides 500A switching and features of current ML Remote Battery Switches, but can be controlled with SPST or SPDT switch for applications where a normally open relay is desired
Specifications Control Circuit Connection:Tinned Wire Nominal Voltage:12V DC Coil Function: Auto releasing Mounting:#10 Amperage Operating Current:8mA when OFF/13mA when ON Amperage Operating Current when changing state:<7A (40 ms) Control Circuit Voltage:10.1 to 16.5V DC Continuous Rating: 500A Intermittent Rating: 700A (5 min) Cranking Rating: 10 sec 2500A Cranking Rating: 1 min 1100A Minimum Operating Temperature:-10° C Maximum Operating Temperature:50° C Cable Size to Meet Ratings:2x (4/0) Live Current Switching:300A @ 12V DC 10,000 Cycles Master Control Switch Capability:Yes Mechanical Endurance:100,000 Cycles Switching Cycles:100,000 Terminal Ring Diameter Clearance:1.18" (29.97mm) Terminal Stud Length:0.875" (22.23mm) Terminal Stud Size:3/8-16 (M10) Terminal Stud Torque:140 in-lb (15.82 Nm) Weight:1.75lb (0.79 kg)
