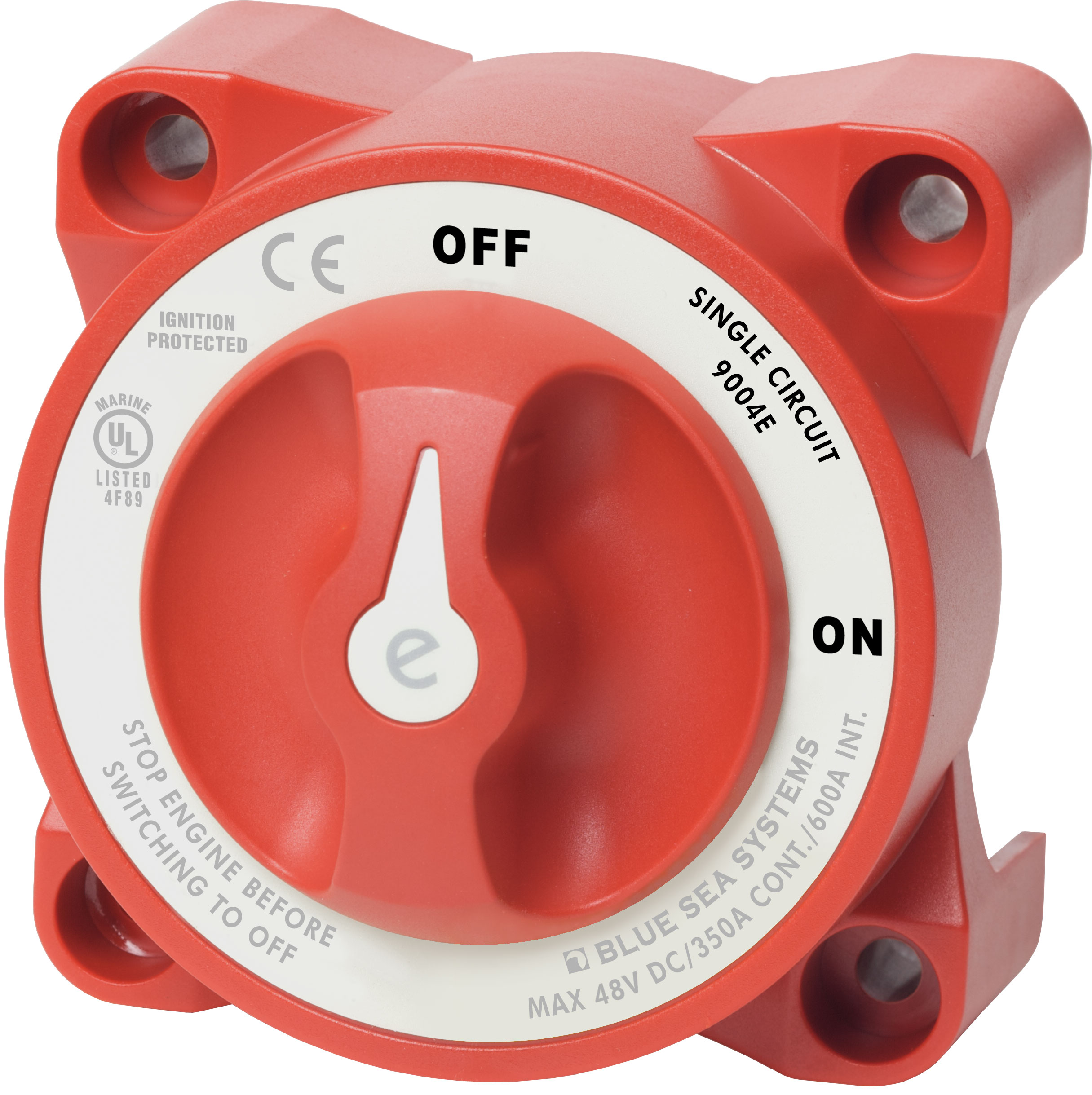

  Blue Sea E-Series Battery Switch ON-OFF with Afd
Click to enlarge

Blue Sea E-Series Battery Switch ON-OFF with Afd

Item #: BLU9004E-BSS


Quantity:

32%

List Price:

$83.99

Price:

$56.99



Flat Rate $10.95 Shipping Available!

In Stock - Ships the next business day.
No restocking fees on return.

Click to verify BBB accreditation and to see a BBB report.

Details:

Blue Sea Systems e-Series On-Off Battery Switch with AFD

Model: 9004E-BSS
  • 350 Amps continuous rating for inboard gasoline or diesel engines.
  • Tin-plated copper studs for maximum conductivity and corrosion resistance
  • Accepts up to 4/0 AWG battery cables
  • Studs accepts 3/8" (M10) ring terminals
  • 7/8" (22mm) stud length accepts multiple cable terminals
  • Blue Sea Systems one-piece terminal stud design never loosens over time
  • Fits most Perko and Guest low amperage battery switch hole patterns
  • Case design allows surface or rear panel mounting
  • Tactile indicator conveys knob position by feel
  • Waterproof — rated IP66 from water projected in powerful jets
  • Ignition protected—safe for installation aboard gasoline powered boats
  • Includes AFD (Alternator Field Disconnect)

Switches a single battery to a single load group

Specifications
Switch TypeSingle Circuit ON-OFF
ColorRed
Switch Positions2
Battery CombineNo
Alternator Field DisconnectYes
Maximum Voltage48V DC
Terminal Stud Torque140 in-lb (15.82 Nm)
Continuous Rating350A
Intermittent Rating600A (5 min)
Cranking Rating 30 sec1200A per circuit
Battery Inputs1
Cable Clearance For 4/0 AWG Cables1.10in (27.94 mm)
Cable Size to Meet Ratings4/0 AWG (120mm )
Mounting HolesAccept 1/4" (M6) Screw
Stud MaterialTinned Copper
Terminal Stud Size3/8" - 16 (M10)
