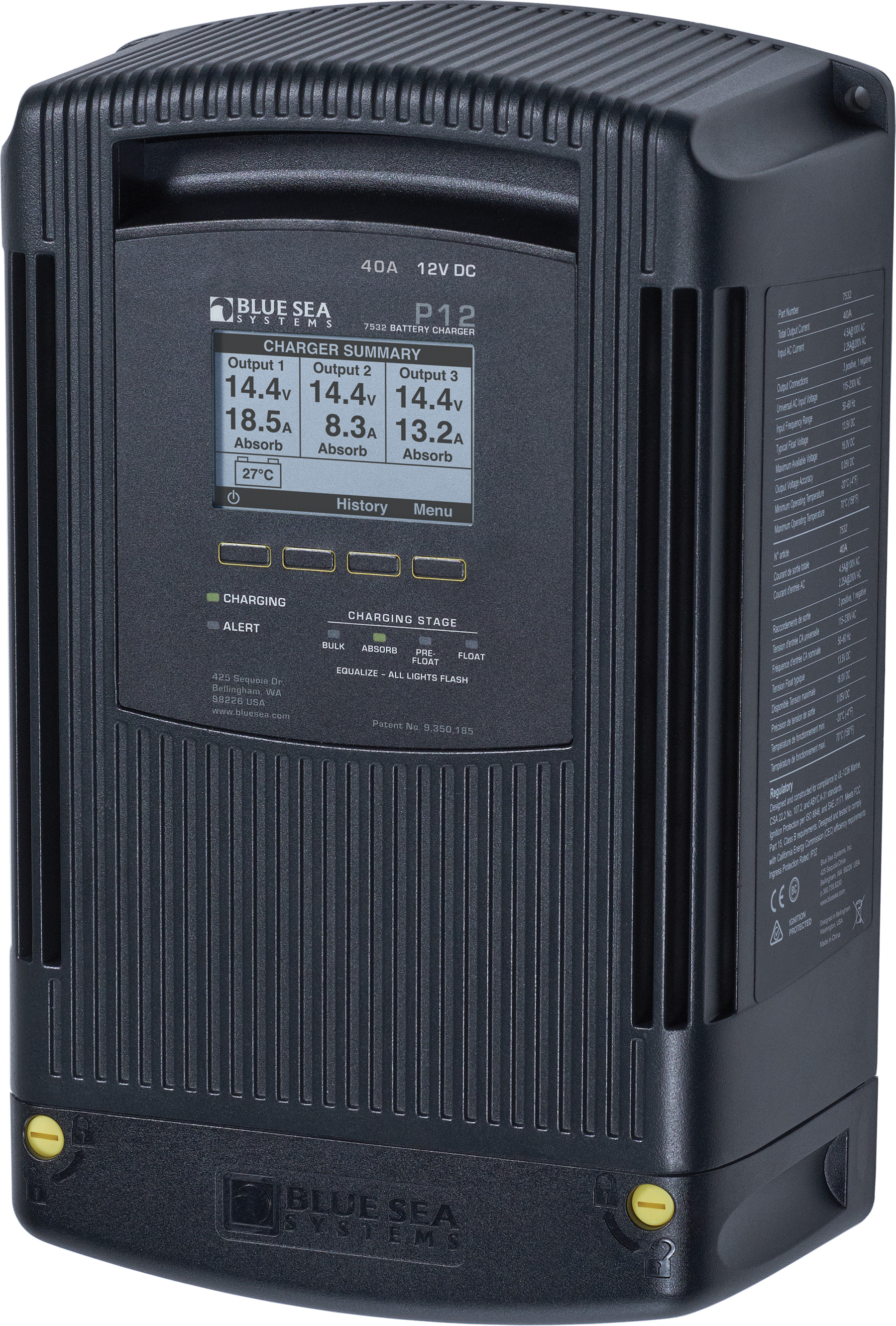

Blue Sea Systems P12 40A 12vDC Battery Charger Model: 7532-BSS
- Rugged, finned aluminum case
- Rugged, finned aluminum case
- Power factor corrected for efficient use of AC
- Intuitive diagnostic screens
- User defined charge profiles and customizable settings
- Provides charging for up to three battery banks
- Large, bright display
- Multi-language: English, French, German, Italian, Spanish
- Charge Coordination with Blue Sea Systems Automatic Charging Relays (ACR) controls ACR state ensuring proper float stage for each battery
- Battery Temperature Compensation - adjusts charge voltage based on battery temperature
- AC over and under voltage shut down and automatic restart
- Over and under battery temperature protection - charger will not operate if battery temperature rises above or falls below a set value
- DC over voltage and reverse polarity protection
- Surge and short circuit protection
Specifications
Total Output Current | 40A | Input AC Current | 7.5A @ 100V A | Maximum Output Voltage | 16V DC | Nominal Voltage | 12V DC | Ignition Protected | Yes | Number of Outputs | 1 negative 3 positive | Stud Size | M6 | Universal AC Input Voltage | 115-230V AC | AC Input Frequency | 45-65Hz | Output Voltage Accuracy | 0.05V | Typical Float Voltage | 13.5V DC | Maximum Operating Temperature | 70° C | Minimum Storage Temperature | -30° C | Maximum Storage Temperature | 80° C | Battery Types | AGM Flooded Lead Acid Gel TPPL | Recommended for Battery Bank Sizes | 330Ah Maximum 60Ah Minimum | Screw Terminal Torque | 10 in-lb (1.13 Nm) M3 15 in-lb (1.69 Nm) M4 | Stud Torque | 80 in-lb (9.04 Nm) | Dimension H x W x D | 13.03in x 8.46in x 3.66in | Warranty | 5 Year |
What's in the Box:- P12 40A Charger
- Mounting hardware
- Ac Strain Releif
- DC Strain relief
- Temperaur Sensor
- Dielectric Grease
|
|
