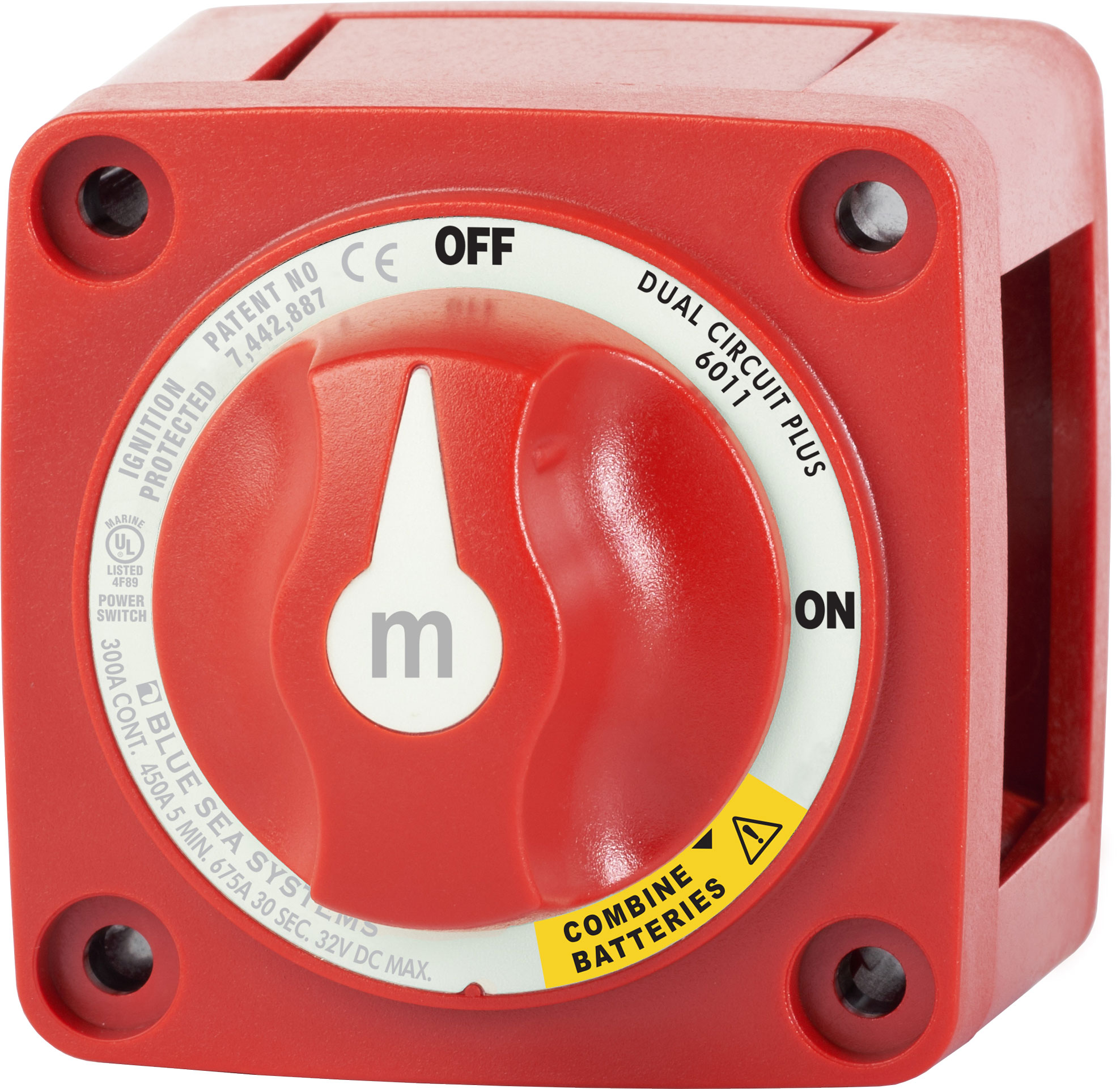

Blue Sea M-SERIES Battery Switch On/Off Dual Circuit Plus

Click to enlarge

Details:

Blue Sea Systems m-Series Mini Dual Circuit Plus™ Battery Switch - Red

Model: 6011-BSS

Tin-plated copper studs for maximum conductivity and corrosion resistance
Studs accept 3/8" (M10) ring terminals
7/8" (22mm) stud length accepts multiple cable terminals
Blue Sea Systems one-piece terminal stud design never loosens over time
Isolating cover with snap-on sections protects rear contacts
Case design allows surface or rear panel mounting
Waterproof — rated IP66 from water projected in powerful jets
One-piece stainless flange nuts ensure safe and secure connections
Breakout tabs allow wire access in any direction
Make before break contact design allows switching between battery banks without power interruption

Simultaneously switches two isolated battery banks or combines battery banks to all loads

Specifications

Switch Type	Dual Circuit Plus
Color	Red
Switch Positions	3
Battery Combine	Yes
Alternator Field Disconnect	No
Maximum Voltage	32vDC
Stud Size	3/8"
Terminal Stud Torque	120 in-lb (13.56 Nm)
Continuous Rating	300A
Intermittent Rating	450A (5 min)
Cranking Rating 30 sec	675A
Battery Inputs	2
Cable Clearance For 4/0 AWG Cables	1.12in (28.45 mm)
Cable Size to Meet Ratings	4/0 AWG (120mm )
Mounting Holes	Accept #10 Screw
Stud Material	Tinned Copper
Stud Torque	120 in-lb (13.56 Nm)
Terminal Stud Size	3/8" - 16 (M10)
