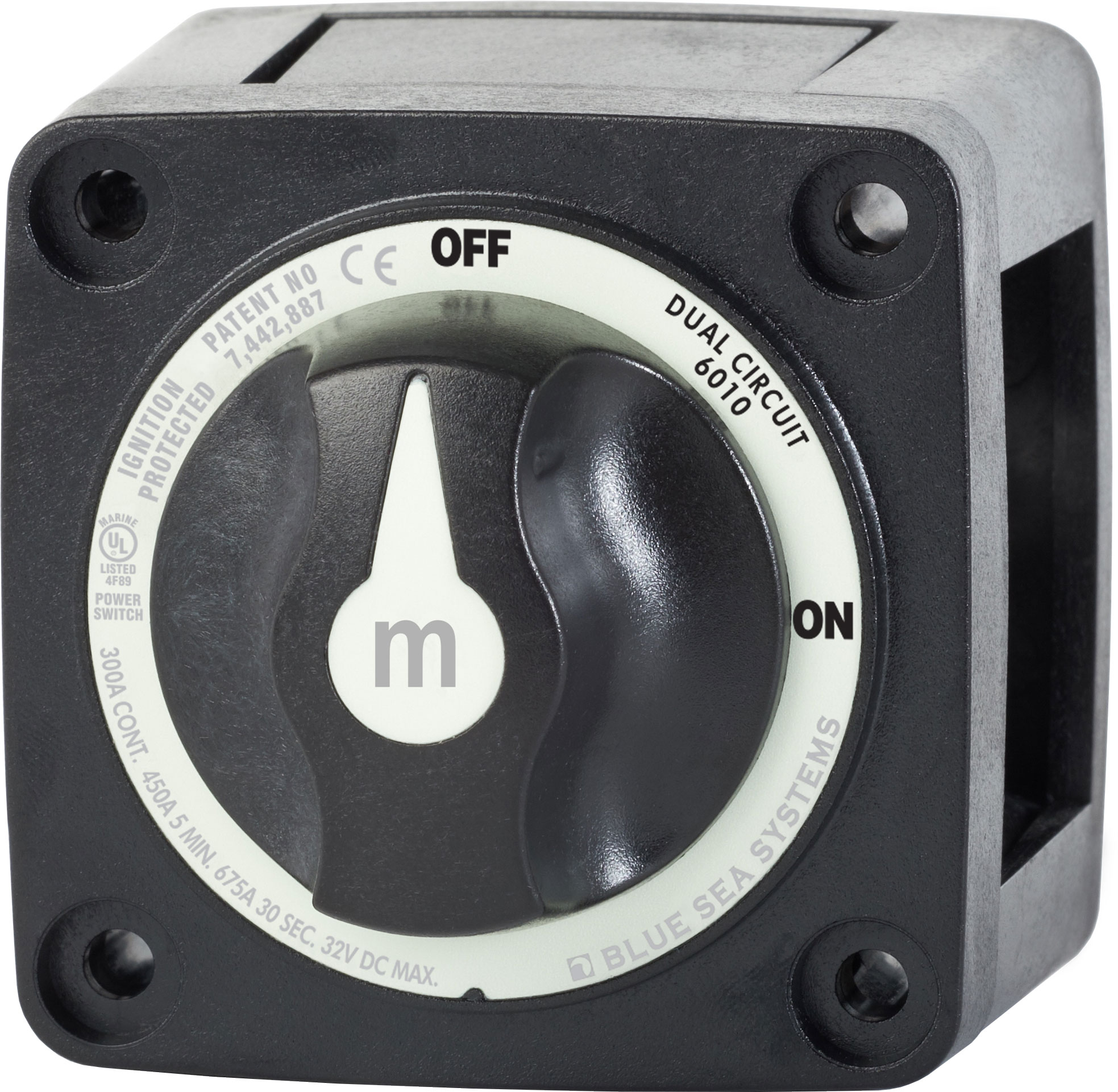

Blue Sea M-SERIES Battery Switch On/Offor Dual Circuit Black

Click to enlarge

Details:

Blue Sea Systems m-Series Mini Dual Circuit Battery Switch - Black

Model: 6010200-BSS

Tin-plated copper studs for maximum conductivity and corrosion resistance
Studs accept 3/8" (M10) ring terminals
7/8" (22mm) stud length accepts multiple cable terminals
Blue Sea Systems one-piece terminal stud design never loosens over time
Isolating cover with snap-on sections protects rear contacts
Case design allows surface or rear panel mounting
Waterproof — rated IP66 from water projected in powerful jets
One-piece stainless flange nuts ensure safe and secure connections
Breakout tabs allow wire access in any direction

Simultaneously switches two isolated battery banks

Specifications

Switch Type	Dual Circuit
Color	Black
Switch Positions	2
Battery Combine	No
Alternator Field Disconnect	No
Maximum Voltage	32vDC
Stud Size	3/8"
Terminal Stud Torque	120 in-lb (13.56 Nm)
Continuous Rating	300A
Intermittent Rating	450A (5 min)
Cranking Rating 30 sec	675A
Battery Inputs	2
Cable Clearance For 4/0 AWG Cables	1.12in (28.45 mm)
Cable Size to Meet Ratings	4/0 AWG (120mm )
Mounting Holes	Accept #10 Screw
Stud Material	Tinned Copper
Stud Torque	120 in-lb (13.56 Nm)
Terminal Stud Size	3/8" - 16 (M10)

Did you Know?

ALL products we sell are factory new and come with the full Manufacturers Warranty!

Related Accessories:

Item #	Description	Price	Order
ANC113502	Ancor #4 Red 25' Spool Tinned Cooper	$53.99
ANC112502	Ancor #6 Red 25' Spool Tinned Cooper	$40.99
ANC242246	Ancor 242246 #6 Cable 3/8" Fastener Battery Lug 25/PK	$33.99
ANC242256	Ancor 242256 #4 Cable 3/8" Fastener Battery Lug 25/PK	$42.99
ANC242266	Ancor 242266 #2 Cable 3/8" Fastener Battery Lug 25/PK	$66.99
