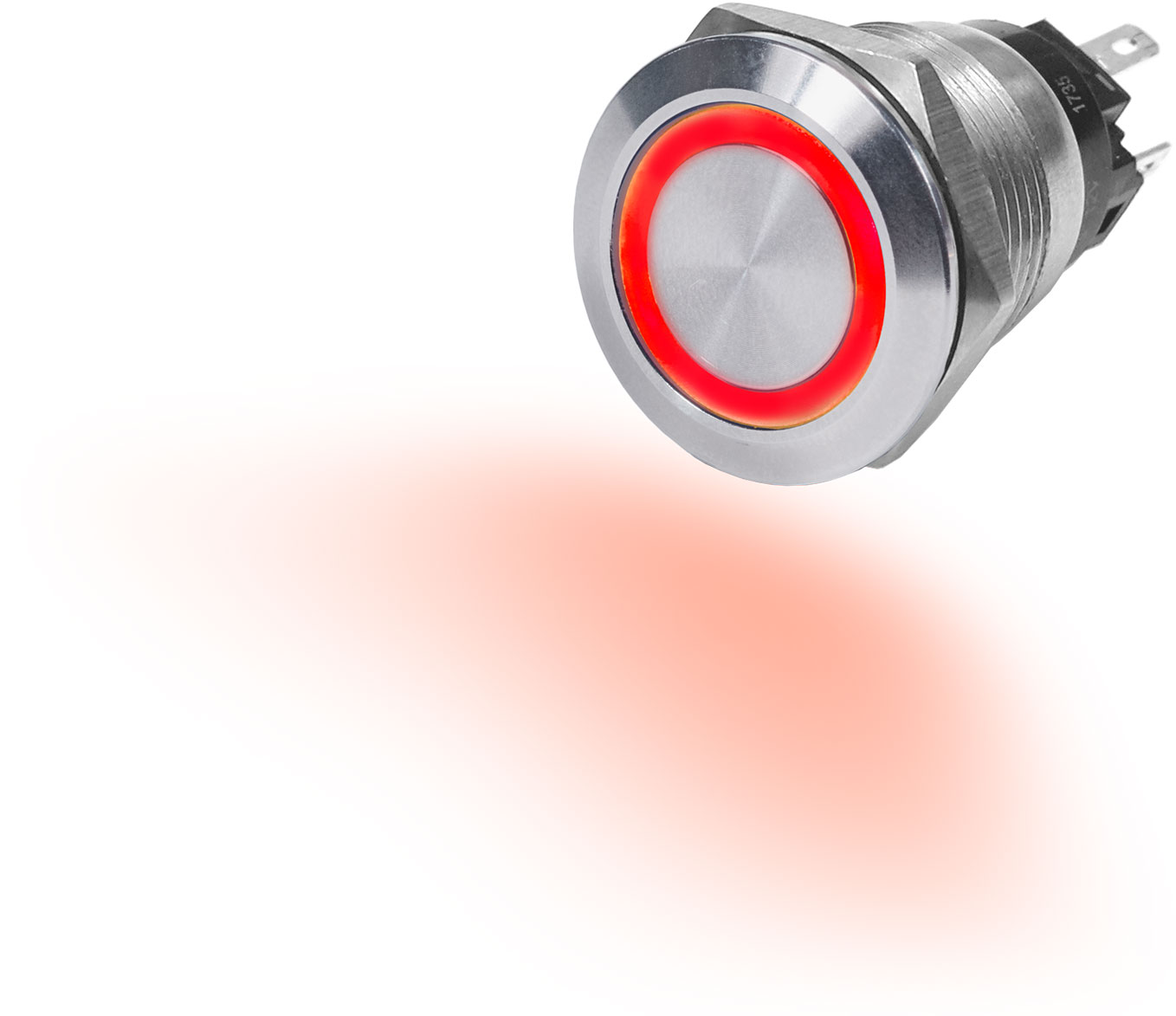

  Blue Sea 4163 10A Push Button LED Ring Switch OFF-(ON) Red Momentary On
Click to enlarge

Blue Sea 4163 10A Push Button LED Ring Switch OFF-(ON) Red Momentary On

Item #: BLU4163-BSS


Quantity:

22%

List Price:

$31.99

Price:

$24.99



Flat Rate $10.95 Shipping Available!

In Stock - Ships the next business day.
No restocking fees on return.

Click to verify BBB accreditation and to see a BBB report.

Details:

Blue Sea 10A Push Button LED Ring Switch Off-(On) Red - Momentary On

Model: 4163-BSS
  • 10A continuous
  • Can be wired for normally open or normally closed
  • Installs with .110inch quick connects (included in retail package)
Specifications
ActionOFF-(ON)- Momentary One
Amperage10A @ 12V DC Resistive
3A @ 12V Inductive
Nominal Voltage12V DC
Maximum LED Operating Current20mA
Minimum Operating Temperature-10° C
Maximum Operating Temperature70° C
Minimum Storage Temperature-55° C
Maximum Storage Temperature85° C
IlluminationIndependent — Separate contacts for LED power
Max Panel Thickness0.31in (7.87 mm)
Mounting Hole¾" (19mm)
Switching Cycles40,000
Termination5 — 0.110inch Quick Connect terminals
