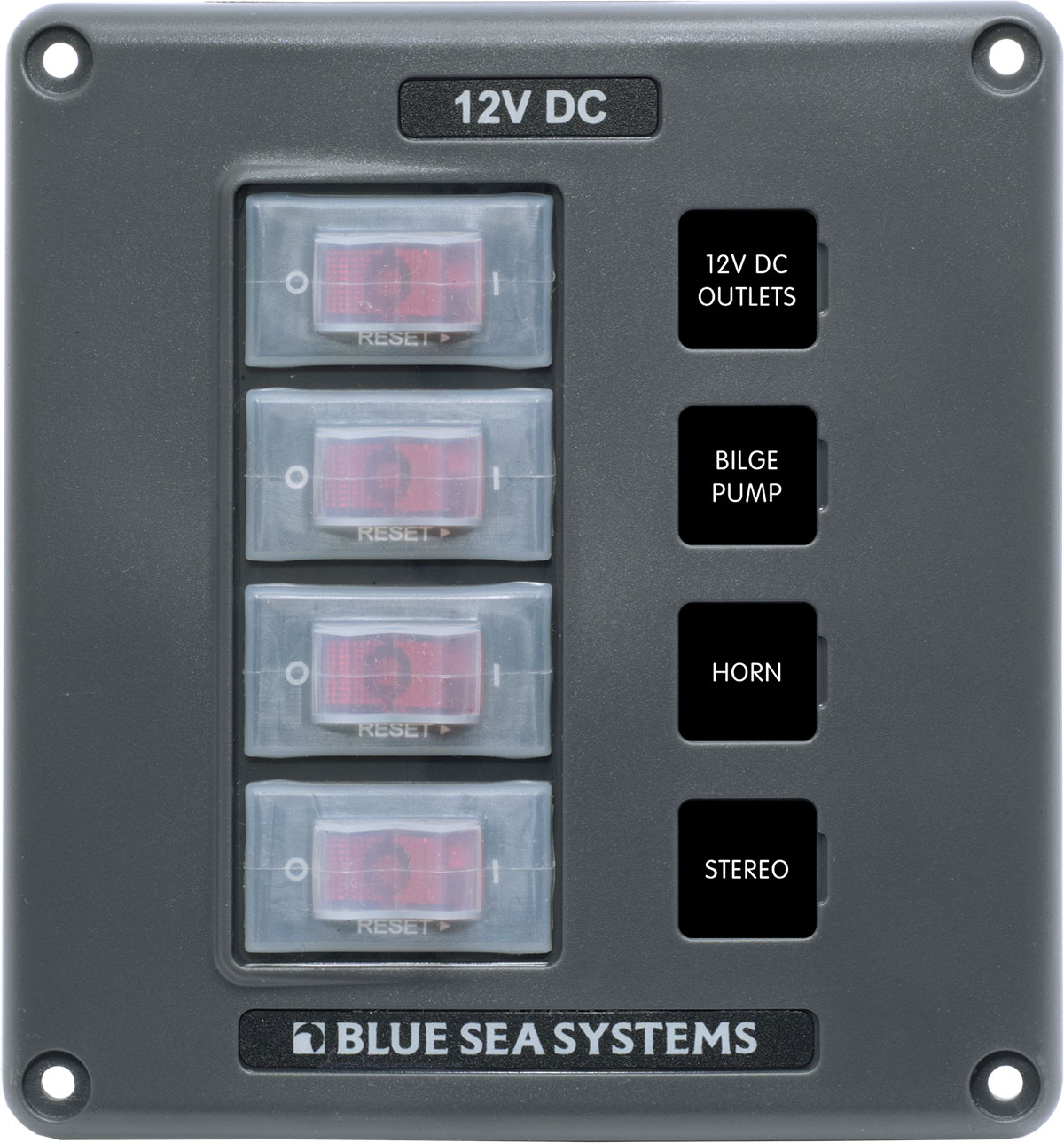

Blue Sea Systems Water-Resistant Circuit Breaker Switch Panel - Gray, 4 Positions
Model: 4320-BSS
Illuminated 15A circuit breakers provide switching, "ON" indication and overcurrent protection
Industry-standard sizes and mounting allow these panels to be easily retroftted in an existing application
Polycarbonate/ABS panel surface is UV-stabilized, ?ame retardant, and will not corrode
Silicon breaker boots and gasket protects against water ingress
Low profle makes it easy to install in tight spaces
Fast-on circuit breaker connectors make it quick to wire
Two-wire connection for powering all panels is simple and requires #10 ring terminals. Terminals screw to bus bars for secure connections
Set of 15 square format circuit labels are included, and are easy to replace. Additional standard or custom labels are available through Blue Sea Systems
Specifications
Color
Gray
Positions
4
Nominal Voltage
12V DC
Circuit Protection
Circuit Breaker
Maximum Amperage
45A 9A @ 24V DC (per circuit)
Terminal Type
1/4" Male quick connect
Hardware
Stainless Steel #6 x 5/8" mounting screws
Ring Terminal Size
M5 (#10)
Dimensions
5.0" H x 1.75"D
