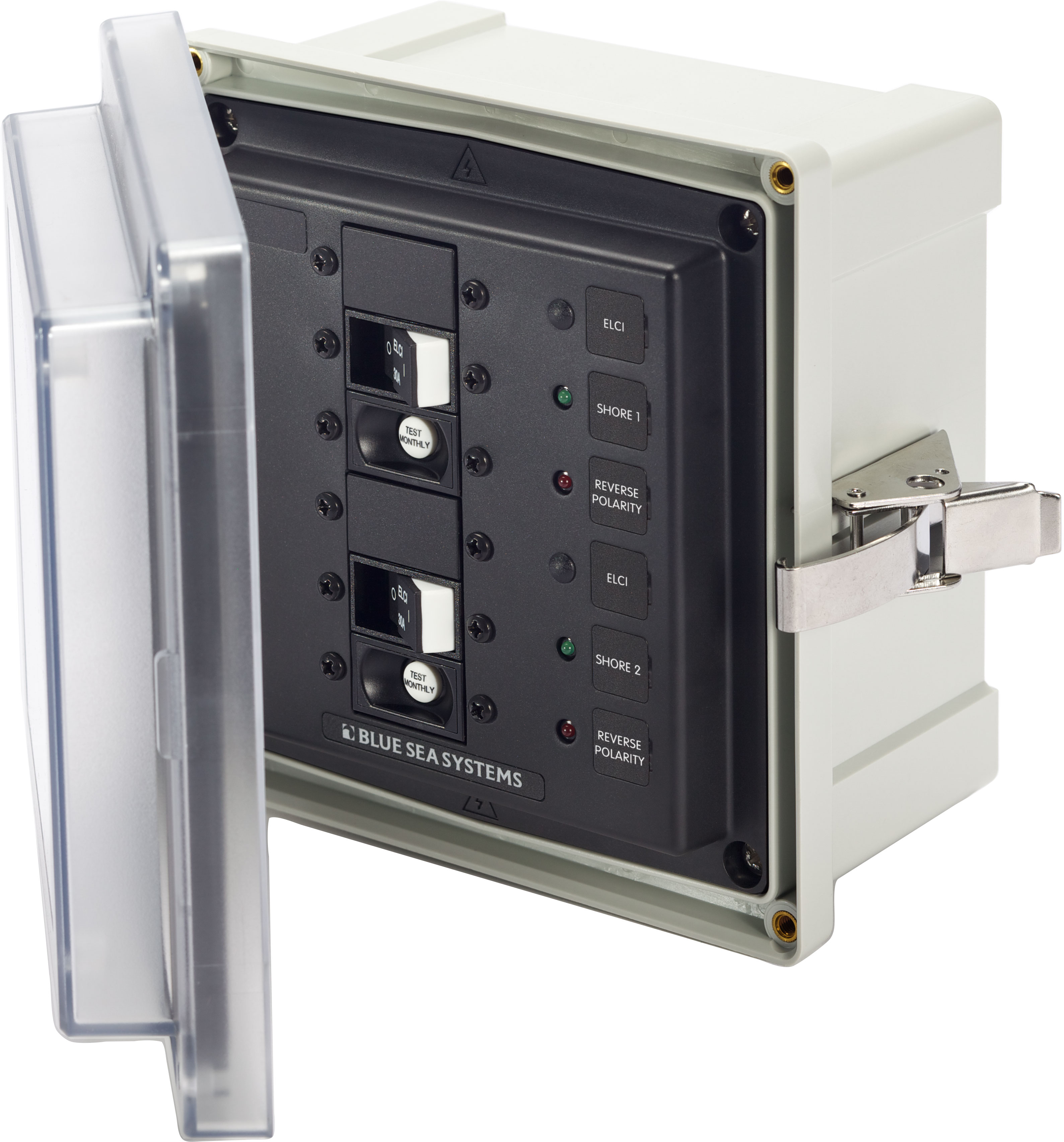

  Blue Sea Panel Enclosure Dual 120V Ac 30A Elci Main Surface Mount System
Click to enlarge

Blue Sea Panel Enclosure Dual 120V Ac 30A Elci Main Surface Mount System

Item #: BLU3117-BSS


Quantity:

27%

List Price:

$1,223.99

Price:

$887.99



$6.00 Shipping Available!

Usually ships the next business day.
No restocking fees on return.

Click to verify BBB accreditation and to see a BBB report.

Details:

Blue Sea SMS Surface Mount System Panel Enclosure - 2 x 120V AC / 30A ELCI Main

Model: 3117-BSS
  • Includes one Dual 120V AC / 30A ELCI Main
  • Glass filled polycarbonate mounting box
  • Clear cover allows easy view of circuit breaker status
  • Overlapping cover for strength and increased gasket protection
  • Oversized, formed in place seamless PUR gasket
  • Easily removable stainless steel hinge pin for unobstructed installation
  • Stainless steel latch secures cover without penetrating the enclosure
  • Stainless steel mounting hardware included
  • Includes waterproof glands
  • LED lights for back lighting and ON indication

Panel enclosure for ELCI Main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10 feet of the shore power inlet

Specifications
Minimum Operating Temperature-40° C
Maximum Operating Temperature85° C
Cover Screws and Hardware10-32 Stainless Steel
Enclosure Size6.0" x 6.0" x 4.0" (152mm x 152mm x 102mm)
Exterior Overall Dimensions7.6" x 7.4" x 4.7" (192mm x 188mm x 120mm)
Mounting Hardware1/4" Diameter, #12 (6 mm)
Weight7.00lb (3.18 kg)

What's in the Box:
  • SMS Panel Enclosure
  • ELCI Main 120V 30A, 30mA, 3102 x 2
  • small wire glands, 3124 x 2
  • medium wire glands, 3125 x 4
  • green "ON" indicating 120V AC LEDs, 8034 x 2
  • red "Reverse Polarity" indicating 120V AC LEDs, 8066 x 2
  • LED plugs x 2
  • circuit breaker mounting screws x 12
  • backlit circuit label positions x 6
  • Source Selection Label Set (10 labels)
  • Reverse Polarity labels x 2
  • ELCI labels x 2
  • Panel Voltage ID label-120V AC
