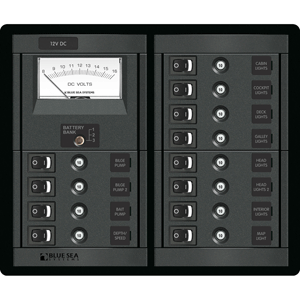

Panels with meters include a toggle switch to monitor voltage on up to three battery banks
Includes 4205-Square Format Label Set
Specifications:
Positions:12
Nominal Voltage:12V DC
Maximum Amperage*:120A
Height:7.75" (196.85mm)
Width:9.25" (234.95mm)
Depth:3.50" (88.9mm)
Weight:4.29lb (1.95kg)
* Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.
Includes: (12) - 7054 - Push Button Reset Only Quick Connect Circuit Breaker - 10 Amps (12) - 7480 - Rocker Switch SPST - ON-OFF (1) - 4205 - Basic DC Label Kit - 30 Black Square Labels [LABEL] (1) - 8003 - DC Analog Voltmeter - 8 to 16V DC (Meter)
