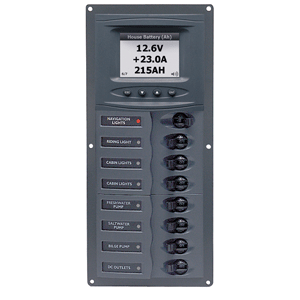

Panel 8SP DC12V DCSM Vertical DC circuit breaker panel with digital monitoring
BEP Marine uses the highest quality materials in its range of Control Panels, from the marine grade aluminium base plates to the Airpax magnetic hydraulic circuit breakers.
Features
Marine Grade powder coated aluminium
Airpax circuit breaker
Stylish Contour Design fascia
Green LED backlit labels
Red LED indicates systems on
Panels meet ABYC standards
Specifications
Total Positions: 8 Loads Circuit Breakers: 2X 5A, 2X 10A, 3X 15A, 1X 20A Nominal Voltage: 12V Maximum Amperage: 160A Dimensions: 11.6" X 5" X 2.5" Neg Bus: 6 Way
