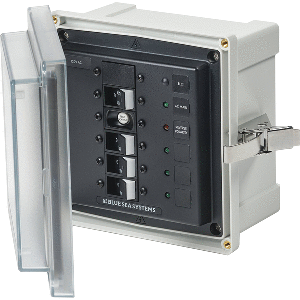

3128 - SMS Panel Enclosure with ELCI (30A) & 3 Branch (15A) - 120V AC
The 3128-panel enclosure is built for Equipment Leakage Circuit Interrupters (ELCI) main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10' of AC shore power inlet.
Features:
Blank apertures for custom breaker loading
Glass-filled polycarbonate base
Clear cover allows easy view of circuit breaker status
Overlapping cover for strength and increased gasket protection
Oversized, formed in place seamless PUR gasket
Easily removable stainless steel hinge pin for unobstructed installation
Stainless steel latch secures cover without penetrating the enclosure
Blank circuit positions accommodate Carling Technologies™ A and C Series Flat Rocker and ELCI Main circuit breakers
Includes waterproof glands
LED lights for backlighting and ON indication
Technical Specifications:
Circuit Breaker Type - 1 x ELCI (30A) Main 120V and 3 x Branch (15A)
Dimensions (Overall) (H x W x D) - 7.6" x 7.4"" x 4.7" (192 x 188 x 120mm)
Dimensions (Enclosure) (H x W x D) - 6" x 6" x 4" (152 x 152 x 102mm)
LEDs Installed - 1 x Red (Reverse Polarity - 120V AC and 4 x Green ON (120V AC)
In the Box:
3128 Enclosure
Glands x 6
Labels
Mounting hardware
Instruction manual
*Sold as an Individual
