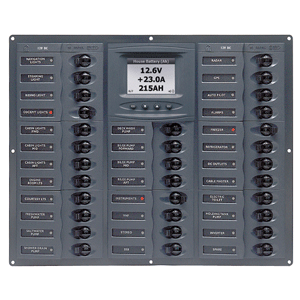

Millennium Series DC Circuit Breaker Panel with Digital Meters, 32SP DC12V
BEP Marine uses the highest quality materials in its range of Control Panels, from the marine grade aluminium base plates to the Airpax magnetic hydraulic circuit breakers.
Features
- Marine Grade powder coated aluminium
- Airpax circuit breaker
- Stylish Contour Design fascia
- Green LED backlit labels
- Red LED indicates systems on
- Mimic Panel for quick reference of systems in operation
- Panels meet ABYC standards
Specifications
Total Positions: 32 Loads Circuit Breakers: 7X 5A, 11X 10A, 11X 15A, 1X 20A, 1X 25A, 2X 30A Nominal Voltage: 12V Maximum Amperage: 160A per bus Dimensions: 11.25" X 13.9" X 2.5" Neg Bus: 24 Way WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
|
|
