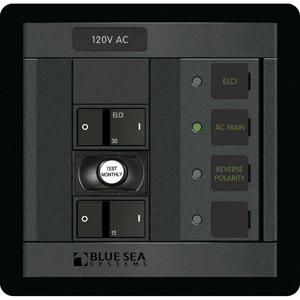

One 30A AC ELCI Main Residual Current Circuit Breaker, leakage trip amperate - 30 mA
ELCI provides overcurrent and leakage protection per ABYC E-11 for whole boat shore power protection
One 15A AC Branch Flat Rocker Circuit Breaker
Red " Reverse Polarity" LED
Includes 4206 AC Panel Basic Square Format Label Set
All circuit label positions are backlit
"ON" indicating LEDs
Specifications:
Positions:1
Nominal Voltage:120V AC
Backlit Label*: Green LED
Height:4.75" (120.65mm)
Width:4.88" (123.95mm)
Depth:3.99" (101.35mm)
Weight:1.00lb (0.45kg)
Includes: (1) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A (1) - 3102100 - A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A
*Green LEDs (Circuit Breaker Panels only) aid low-light readability. All labels will be lit when the panel is powered, regardless of individual switch position
