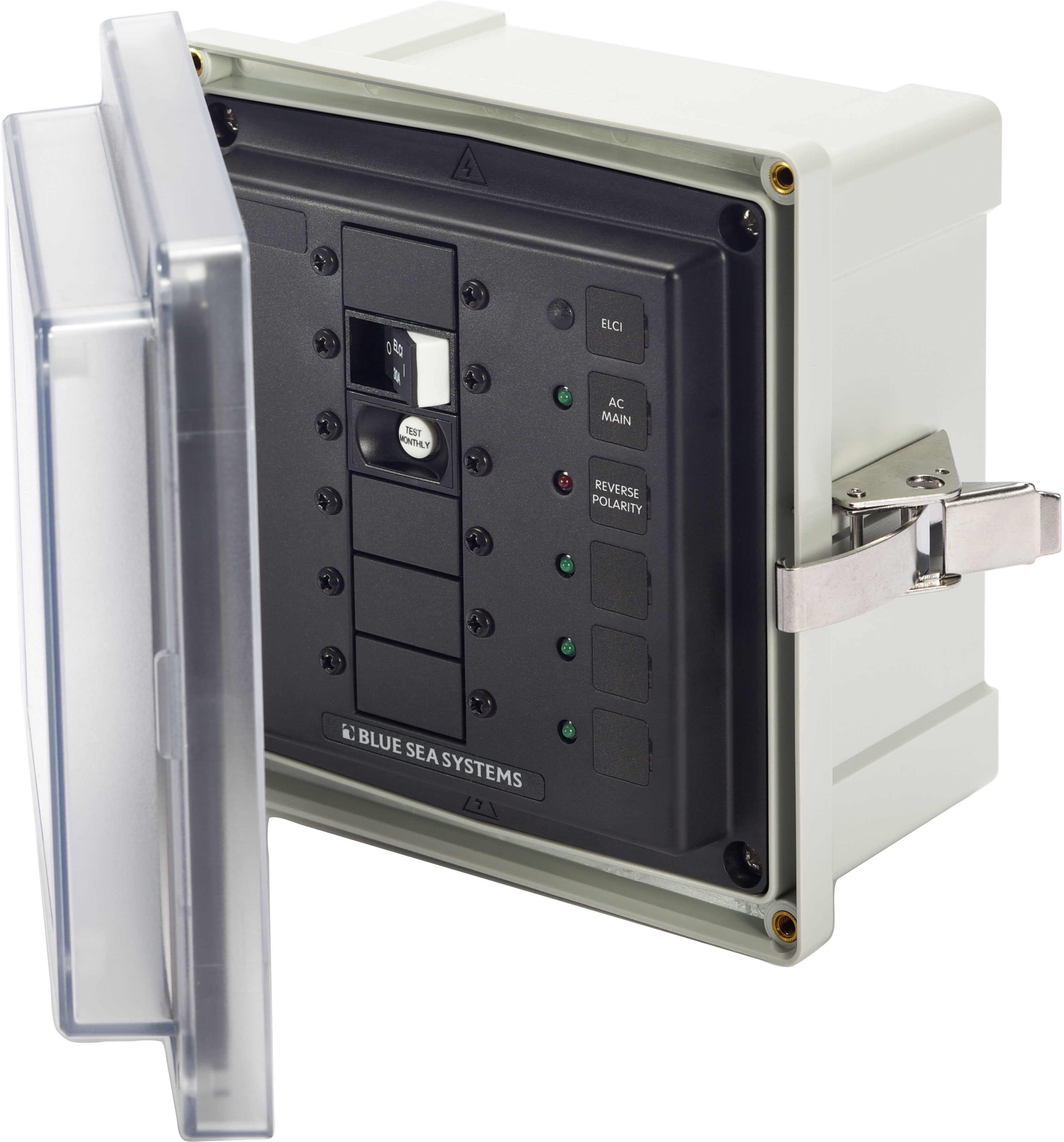

Blue Sea SMS Surface Mount System Panel Enclosure - 120V AC / 30A ELCI Main - 3 blank circuit positions
Model: 3116-BSS
Includes one 120V AC / 30A ELCI Main and three blank positions
Blank apertures for custom breaker loading
Glass filled polycarbonate mounting box
Glass filled polycarbonate mounting box
Overlapping cover for strength and increased gasket protection
Oversized, formed in place seamless PUR gasket
Easily removable stainless steel hinge pin for unobstructed installation
Stainless steel latch secures cover without penetrating the enclosure
Blank circuit positions accommodate Carling Technologies™ A- and C- Series Flat Rocker and ELCI Main circuit breakers
Stainless steel mounting hardware included
Includes waterproof glands
LED lights for back lighting and ON indication
Panel enclosure for ELCI Main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10 feet of the shore power inlet
Specifications
Minimum Operating Temperature
-40° C
Maximum Operating Temperature
85° C
Cover Screws and Hardware
10-32 Stainless Steel
Enclosure Size
6.0" x 6.0" x 4.0"
Exterior Overall Dimensions
7.6" x 7.4" x 4.7"
Mounting Hardware
1/4" Diameter, #12 (6 mm)
What's in the Box:
SMS Enclosure
# 3124 Gland for #14-10 wire x 2
#3125 Gland for #14-10(3 Conductor) wire x 3
#4206 AC Label Kit
AC Main Label
ELCI Label
310210 ELCI Breaker 120 VAC 30A
# 8034 LED - 120V AC Green (ON Indicating) x 4
# 8066 LED - 120V AC Red (Reverse Polarity Indicating)
