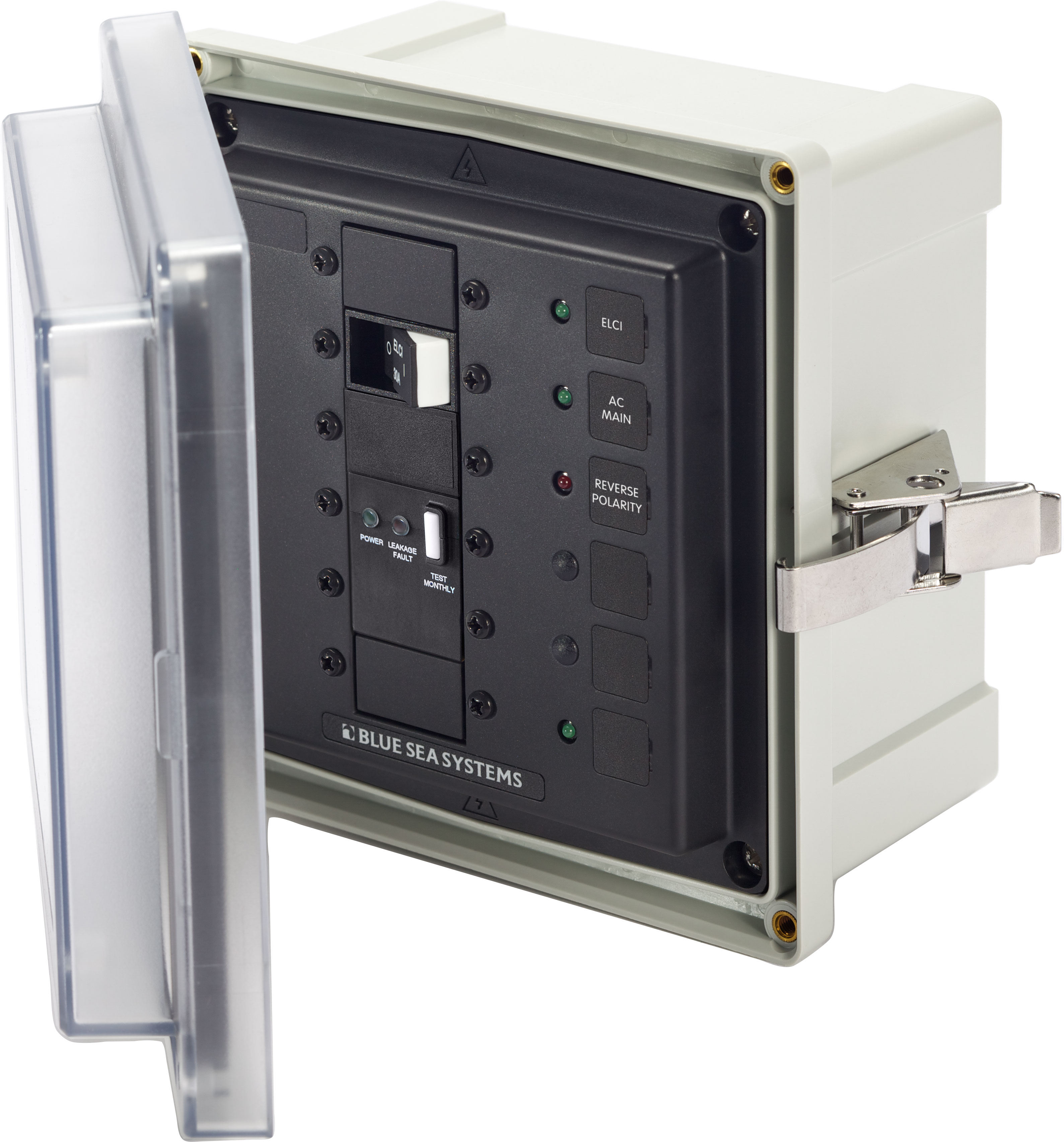

  Blue Sea Panel Enclosure 120/240V Ac 50A Elci Main Surface Mount System
Click to enlarge

Blue Sea Panel Enclosure 120/240V Ac 50A Elci Main Surface Mount System

Item #: BLU3119-BSS


Quantity:

28%

List Price:

$1,009.99

Price:

$731.99



$6.00 Shipping Available!

In Stock - Ships the next business day.
No restocking fees on return.

Click to verify BBB accreditation and to see a BBB report.

Details:

Blue Sea SMS Surface Mount System Panel Enclosure - 120/240V AC / 50A ELCI Main - 1 blank circuit position

Model: 3119-BSS
  • Includes one 120/240V AC / 50A ELCI Main and one blank position
  • Blank apertures for custom breaker loading
  • Glass filled polycarbonate mounting box
  • Clear cover allows easy view of circuit breaker status
  • Overlapping cover for strength and increased gasket protection
  • Oversized, formed in place seamless PUR gasket
  • Easily removable stainless steel hinge pin for unobstructed installation
  • Stainless steel latch secures cover without penetrating the enclosure
  • Blank circuit positions accommodate Carling Technologies™ A- and C- Series Flat Rocker and ELCI Main circuit breakers
  • Stainless steel mounting hardware included
  • Includes waterproof glands
  • LED lights for back lighting and ON indication

Panel enclosure for ELCI Main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10 feet of the shore power inlet

Specifications
Minimum Operating Temperature-40° C
Maximum Operating Temperature85° C
Cover Screws and Hardware10-32 Stainless Steel
Enclosure Size6.0" x 6.0" x 4.0"
Exterior Overall Dimensions7.6" x 7.4" x 4.7"
Mounting HardwareMounting Hardware
Weight7.00lb (3.18 kg)

What's in the Box:
  • SMS Panel Enclosure
  • ELCI Main 120/240V, 50A, 30mA, 3104
  • small wire glands, 3124 x 2
  • medium wire gland, 3125
  • large wire glands, 3126 x 2
  • green "ON" indicating 120V AC LEDs, 8034 x 3
  • red "Reverse Polarity" indicating 120V AC LED, 8066
  • LED plugs x 3
  • circuit breaker mounting screws x 12
  • backlit circuit label positions x 4
  • AC Main label
  • Reverse Polarity label
  • ELCI label
  • Basic AC labels, 4206
  • Panel Voltage ID label-120V/240V AC
