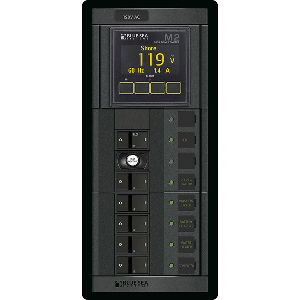

1504 - 360 Panel - ELCI + 5 Position 120V AC Flat Rocker with M2 AC Multimeter
Part of the Blue Sea Systems Battery Management Panels. This one standard panel features Equipment Leakage Circuit Interrupter (ELCI) protection with branch breakers and will reduce the risk of fire and shock hazards caused by defects in appliances and circuit wiring.
Features:
Provides Main circuit protection with branch circuits
Green ON indicating LEDs
Backlit label positions
Technical Specifications:
Positions - Five (5) + ELCI
Amperage - 30A AC trip reference
Actuator Style - Flat Rocker
Meter - M2 AC Multimeter
Nominal Voltage - 120V
Circuit Breaker Type - A-Series: 5 Branch (15A) and ELCI Main (30A)
Leakage Trip Amps - 30mA
Dimensions (H x W x D) - 10.75" x 4.88" x 3.99" (273 x 124 x 101mm)
In the Box:
1504 Panel
Instruction Manual
*Sold as an Individual
