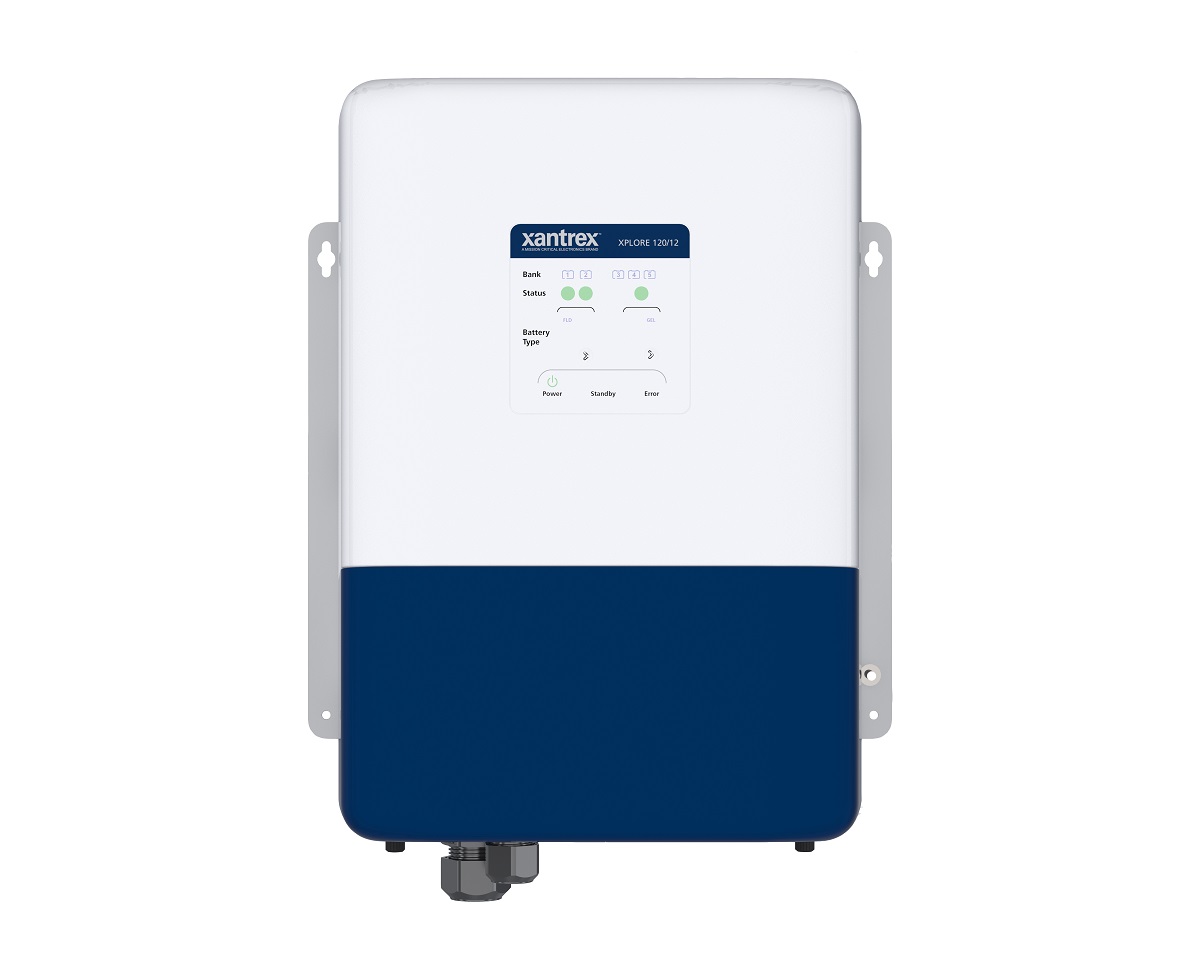

Xantrex Xplore battery Charger 12v 120 Amp Model: 819-0120-12
- 6 Battery Banks and Dual-Chemistry Charging
- Xantrex Lithium and Custom Battery Charging
- NMEA 2000 Connectivity
- Xantrex App Connectivity
- Auto-ranging universal input voltage (80-265 Vac, 45-65 Hz)
- Power Share: automatically reduces charging output to prevent nuisance tripping of the AC input breaker.
- Quiet Mode: when enabled, the internal fan is turned off and the charger operates at a reduced output when quietness is needed.
- Storage Mode: automatically refreshes your batteries once every several days of non-use to ensure optimal battery condition.
- Dead Battery Charging: ability to charge a battery as low as 0V back to full-charge
- Reverse battery polarity protection
- Drip-proof design
- Over and under-temperature protection
- DC over-voltage protection
- Battery overcharging protection
The XPLORE 120/12 battery charger is the largest and most powerful charger in the market today. The universal, auto-ranging AC input and 120 amps of output current ensures ultra-fast and reliable worldwide charging. With up to six output banks of simultaneous charging combined with the ability to charge two battery banks with differing chemistries, the XPLORE 120/12 eliminates the need to have separate single-chemistry chargers and minimizes installation and wiring costs for your house bank and engine bank. It is also equipped with an easy-to-read front panel LED display for basic configuration and status information. Advanced monitoring and configuration is enabled by NMEA 2000 protocol or Xantrex app using the Xantrex BLE module. Specifications
| ELECTRICAL SPECIFICATIONS | | Max Total BAT1-6 DC Output Current | 120A | | Max Total BAT1-2 DC Output | Current 5 to 120A (selectable) | | Max Total BAT3-6 DC Output | Current 5 to 40A (selectable) | | DC Output Voltage | 12Vdc (nominal) | | DC Output Connections | 6 | | AC Input Voltage (Auto Ranging) | 120Vac / 230Vac (nominal), 80 to 265 Vac | | Power Factor at Full Charge Rate | > 98% | | Charging Modes | 3-Stage, 2-Stage, Constant Voltage | | Supported Battery Types | AGM, FLD, GEL, Xantrex LFP, Custom | | Equalization (FLD Battery Only) | Yes | | GENERAL SPECIFICATIONS | | Operating Temperature | 4 to 140 F (-20 to 60 C), with output derated above 122 F (50°C) | | Storage Temperature | 40 to 176 F (-40 to 80 C) | | Operating Humidity | 5 to 95% RH, non-condensing | | AC Input Terminal Connection | 3-position tool-free spring clamp terminal | | DC Output Terminal Connection | BAT1-2: Two M6 stud terminals | | L x W x H Charger | 16.26in (413mm) x 12.34in (312mm) x 6.5in (165mm) | | Ingress Protection (IP) Rating Charger: | IP-32 (vertical) | | REGULATORY APPROVALS | | Safety | ETL listed to CSA C22.2 No. 107.2, conforms to UL Std. UL1236 (with Marine Supplement) | | EMC | 47 CFR (FCC) Part 15B, Class B and CAN ICES-3(B) / NMB-3(B) | | Ignition Protection | SAE J1171, ABYC C-1500 |
What's in the Box:- XPLORE Charger unit
- Xantrex BLE Module (PN: 808-0889)
- Owner's Guide and extra labels
|
|
