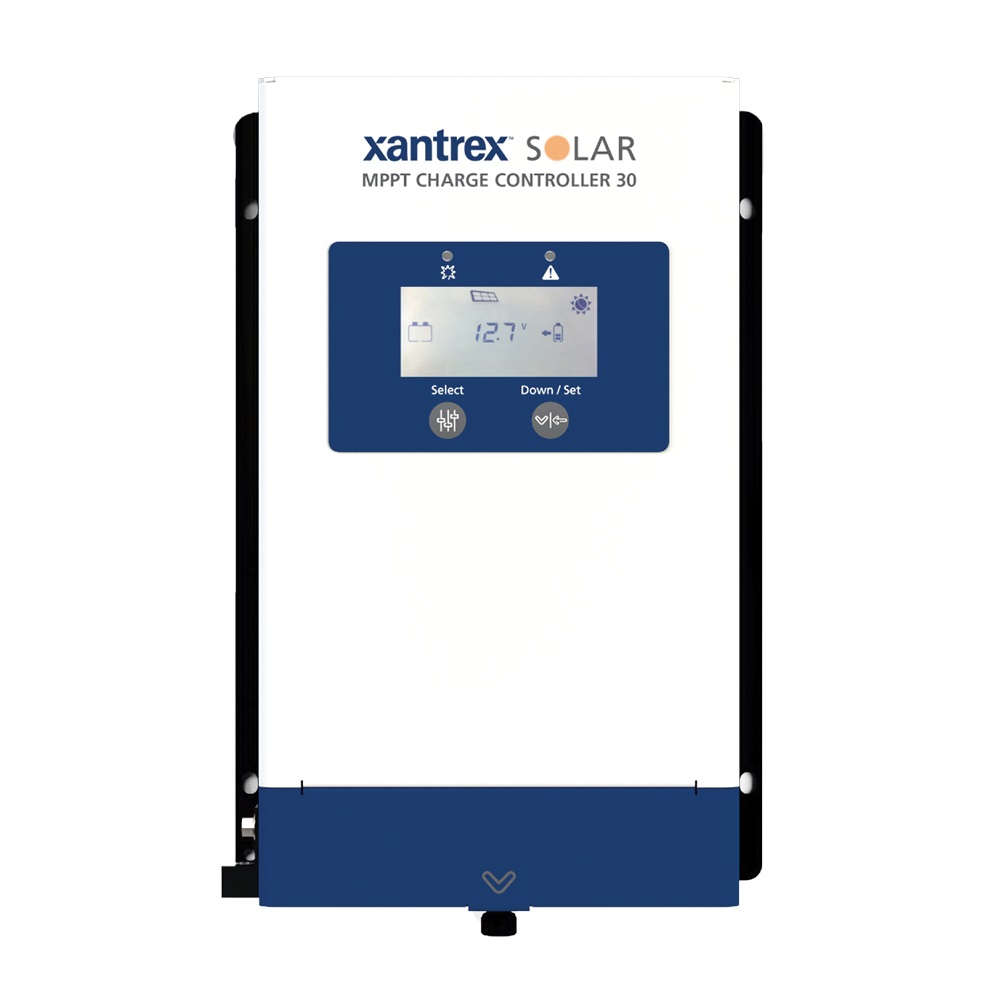

Xantrex MPPT Charge Controller Model: 710-3024-01
- Advanced Maximum Power Point Tracking (MPPT) technology increasing daily energy harvest by 20-30% compared to PWM technology
- Dual-battery bank charging to simultaneously charge house and starter batteries
- Best-in-class PV array and battery protections
- House battery types supported: Sealed (AGM), Gel, Flooded, Lithium Iron Phosphate(LiFePO4)
Designed to charge lithium ion batteries including LIFePO4, the 30 A MPPT (Maximum Power Point Tracking) charge controller features an industry leading 98% charging efficiency and dual bank output to charge and maintain house and starter batteries. The Xantrex Solar MPPT Charge Controller 30 features advanced Maximum Power Point Tracking (MPPT) technology, providing an instant upgrade to your solar system with up to 30% more power compared to PWM charge controllers. Offering greater flexibility, simplicity, and efficiency in PV array designs, higher voltage PV arrays can be used up to 72V (nominal). Equipped with dual-battery bank charging ports ideal for simultaneously charging and maintaining 12V house and starter batteries, best-in-class PV array and battery protections, and a built-in LCD display providing real-time system data. Optional accessories include a remote battery temperature sensor and remote panel. Specifications
| Nominal System Voltage | 12/24V Auto-Detect | | Rated Charge Current | Battery 1: 30A
Battery 2: 1A | | Battery Voltage Range | 8 to 32V | | Max. PV Open Circuit Voltage | 100V | | MPP Voltage Range | (Battery voltage + 2V) up to 72V | | Max. PV Input Power | 12V: 580W
24V: 1170W | | Rated Charge Power | 12V: 390W
24V: 780W | | Battery Types Supported* | Battery 1 (House): Lead-acid battery (Sealed(AGM) / Gel / Flooded) Lithium Iron Phosphate (LiFePO )
Battery 2 (Starter): Lead-acid battery (Sealed(AGM) / Gel / Flooded) | | Self-consumption | 12V: 17mA
24V: 10mA | | Grounding | Common negative | | ENVIRONMENTAL DATA | | Storage Temperature Range | -20°C to 70°C | | Operating Temperature Range | -25°C to 45°C (fully-rated output) | | MECHANICAL DATA | | Dimensions | 5.91" W X 9.92" H X 2.64" D (165.0mm W X 251.9 mm H x 67.0 mm D) | | Max. Cable Size (PV Array and Battery 1) | 0.63in (16mm ) / 6AWG | | Recommended Cable Size (PV Array and Battery 1) | 0.24in (6mm ) / 10AWG or higher | | Max. Cable Size (Battery 2) | 0.16in (4mm ) / 12AWG | | Recommended Cable Size (Battery 2) | 0.04in (1mm ) / 18AWG or higher |
|
|
