Details: |
|

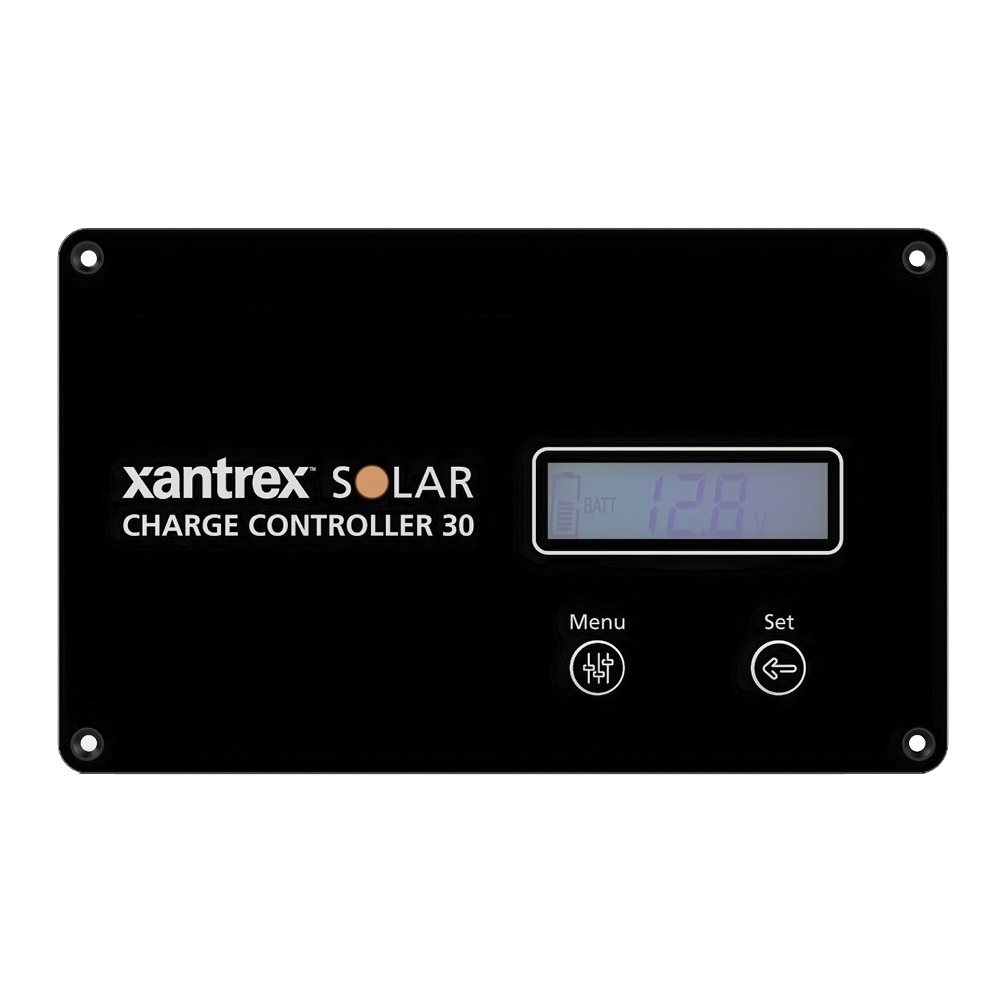

Xantrex PWM Charge Controller Model: 709-3024-01
- Advanced multi-stage charging technology, Bulk, Absorption, Float, Equalization
- Battery types supported: Sealed (AGM), Gel, Flooded, Lithium Iron Phosphate (LiFePO4)
- Best-in-class PV array and battery protections
- Aesthetic flush-mount industrial design
Designed to charge lithium ion batteries including LIFePO4, the 30 A PWM (Pulse Width Modulation) charge controller features a flush mount industrial design for a clean finish. The Xantrex Solar PWM Charge Controller 30 features a highly-efficient PWM charging mode, designed specifically for an aesthetically clean and integrated look in an RV, boat, and truck. Intuitive and easy-to-program to get your solar system harvesting energy as quickly as possible. Equipped with best-in-class PV array and battery protections and a built-in LCD display providing real-time system data. Optional accessories include a remote battery temperature sensor. Specifications
| Nominal System Voltag | 12/24V Auto-Detect | | Battery Input Voltage Range | 8V to 32V | | Rated Charge Current | 30A | | Max. PV Short Circuit Current | 30A | | Max. PV Open Circuit Voltage | 50A | | Battery Types Supported | Sealed (AGM) / Gel / Flooded / Lithium Iron Phosphate (LiFePO ) | | elf-consumption | 12V: 4.2mA
24V: 2.6mA | | Temperature Compensation Coefficient | -3mV/°C/2V | | Grounding | Common negative | | ENVIRONMENTAL DATA | | Storage Temperature Range | -30°C to 80°C | | Operating Temperature Range | -20°C to 55°C (fully rated output) | | MECHANICAL DATA | | Dimensions | 7.03" W x 4.31" H x 1.86" D (178.5mm W x 109.4mm H x 47.3mm D) | | Max. Cable Size (PV Array and Battery | 0.63in (16mm ) / 6AWG | | Recommended Cable Size | 0.24in (6mm2) / 10AWG or larger |
|
|
