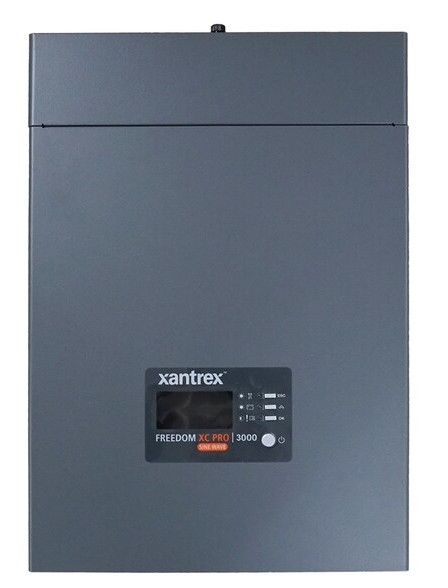

The Freedom XC PRO inverter/charger, supporting RV-C and J1939 protocols, is the most versatile and flexible AC power solution in the market today. It also features a 150 amp battery charger and offers all of the configurable features of the Freedom XC series inverter/charger in a compact, light weight package. It cranks out full output in invert or charge mode from -4°F (-20°C) - 104°F (40°C) for operation in all climate temperatures. The extended surge rating enables compressor loads such as an A/C or a fridge to start reliably.
Inverter Specifications |
AC Output Operating Voltage Options | 120, 110, 108 Vac |
Continuous Output Power | Continuous Power 3000 W @40 C True sine wave (TSW) |
Continuous AC Output Current | 25A |
Surge Power | 6000 W (? 5 sec) |
Frequency (Configurable) | 60 (or 50) Hz |
Peak Efficiency | 91% |
Full Load Efficiency | greater than or equal to 84% |
Operating Input AC Pass-Through Voltage Range | 85-140 Vac |
Safe Non-Operating Input AC Voltage Range | Up to 240 Vac RMS |
Power Factor at Full Charge Rate | > 98% |
Battery Charger Specifications |
Min Battery Voltage for Charging | 0.0 Vdc |
Max DC Output Voltage | 18.0 Vdc (custom battery type) |
Selectable DC Output Current | User Selectable: 5 - 150 A |
Full Load Max AC Input Current | 25 Arms |
Max DC Charge Current | 150A |
General Specifications |
Operating Temperature Range | 4 to 140 F (-20 to 60 C), with output derated above 104 F (40 °C) |
Storage Temperature Range | -40 to 158 F (-40 to 70 C) |
Operating Humidity Range | 5 to 95% RH, non-condensing |
Transfer Relay AC Current Rating | 50 A surge, 40 A continous |
DC Input Operating voltage range | 10.1 - 18.0 VDC |
DC Input Max Non-Operating Voltage | 25 Vdc |
DC Input/Output Nominal Voltage (inverting/ Charging) | 12.0 Vdc |
DC Nominal Current at Full Load | 304Adc |
L x W x H (without flanges) | 5.4"(390 mm) x 10.8"(275 mm) x 4.9"(125 mm) |
L x W x H (with flanges) | 16.0"(406 mm) x 12.0"(305 mm) x 4.9"(125 mm) |
