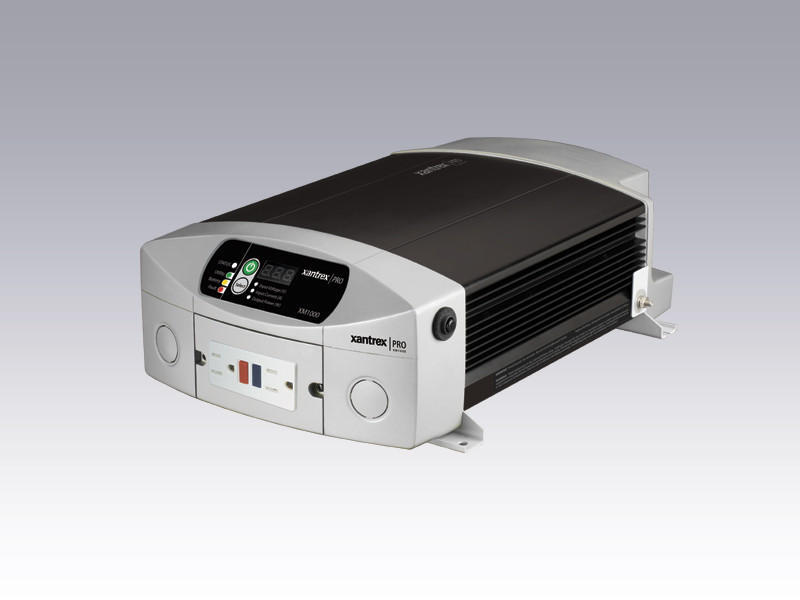

PRO Series Inverters
Performance inverters designed for RVs and boats
Designed for RV and marine electrical systems that already have a battery
charger or generator installed, Xantrex PRO Inverters deliver modified sine wave
power for small appliances, TVs, and other onboard electronics from a battery
bank.
Description
The Xantrex PRO Series Inverters are the perfect complement to generators
when shore power is unavailable, to quietly and efficiently provide household
power when needed. The PRO Series design is both user friendly and versatile.
These inverters feature a detachable, digital remote control to display precise
inverter, AC source and battery status information from one convenient location.
A built-in transfer switch automatically detects when generator or shore power
status changes to ensure power is always available.
Both 1000 and 1800 W models are designed for demanding RV and marine
conditions. They meet FCC Class B regulations to eliminate interference
potential with other electronics, while UL 458 certification means they meet
strict RV and marine safety standards. Versatile enough to be mounted either
horizontally or vertically, these inverters can be easily installed to fit into
any compartment. Conformal coated boards also minimize the chance of problems
from moist operating conditions.
Performance Features
- 1000/1800W inverter easily powers TVs, small appliances, and other
electronics
- Built-in 15A circuit breaker to protect GFCI connected loads
- Up to 25A pass through for hardwired loads
- Digital remote control displays power output, AC source and battery
voltage
- Detachable remote control can be mounted wherever convenient
- Conformal coated electronics provide moisture resistance
- Designed to be hard-wired using a terminal strip or by connecting AC
through a GFCI receptacle (included)
Protection Features
- Battery over-voltage and under-voltage protection
- Over temperature shutdown
- Automatic overload protection
- Short-circuit protection
- Ground fault protection
Specifications:
|
Electrical Specifications |
|
|
Models |
|
XM1000 |
|
XM1800 |
|
|
Maximum continuous power |
|
1000 W |
|
1800 W |
|
|
Surge rating |
|
2000 W |
|
3600 W |
|
|
Output current (continuous) |
|
8.3 A |
|
15 A |
|
|
Output voltage (at no load) |
|
115 V +/- 10 V |
|
115 V +/- 10 V |
|
|
Output frequency |
|
60 Hz +/- 1 Hz |
|
60 Hz +/- 1Hz |
|
|
Output waveform |
|
Modified sine wave |
|
Modified sine wave |
|
|
Peak efficiency |
|
88% |
|
88% |
|
|
No load power draw |
|
< 6 W |
|
< 6 W |
|
|
Power draw in standby mode |
|
< 2 W |
|
< 2 W |
|
|
Input operating voltage range |
|
11.0-15.5 VDC |
|
11.0-15.5 VDC |
|
|
Transfer relay rating |
|
25 A |
|
25 A |
|
|
Transfer time |
|
<35 milliseconds |
|
<35 milliseconds |
|
|
|
|
|
|
|
|
|
General Specifications |
|
|
Operating temperature range |
|
0°C - 40°C |
|
0°C - 40°C |
|
|
Storage temperature range |
|
-20°C - 60°C |
|
-20°C - 60°C |
|
|
AC receptacles |
|
2 |
|
2 |
|
|
Recommended DC fuse |
|
150 A |
|
250 A |
|
|
Dimensions (H x W x D) |
|
4 x 8.3 x 13" (103 x 211 x 329mm) |
|
4 x 8.3 x 15.5" (103 x 211 x 393mm) |
|
|
Weight (lbs) |
|
7.5 |
|
9.5 |
|
|
Part numbers |
|
806-1010 |
|
806-1810 |
|
|
Warranty |
|
1 year |
|
1 year |
|
|
Regulatory Approval |
|
|
FCC Class ‘B’, UL 458 |
|
|
