Details: |
|

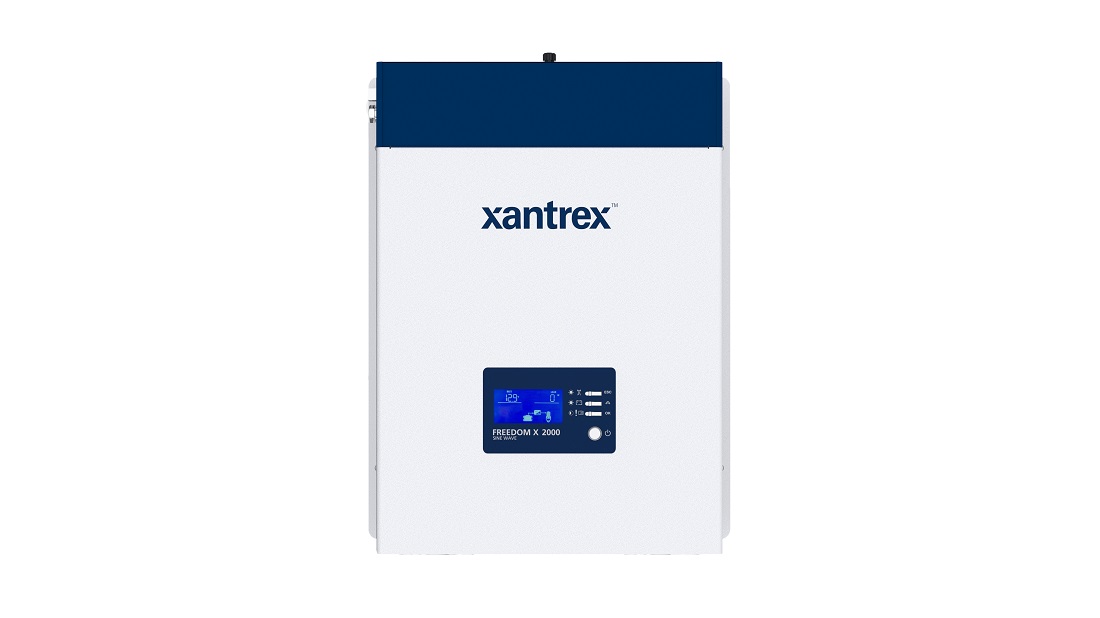

Xantrex Freedom X 2000 230v 2000W Inverter Model: 817-2000-12
- Extended Surge Rating: Surges to 2X continuous power for at least 2 seconds for motor loads
- True Sine Wave AC Power: For operation of sensitive and motor loads
- Ignition Control: Feature to turn inverter on/off via a 12 VDC signal and to minimize battery drain by switching the inverter off when the ignition key is turned off
- Wide 10-17 VDC Input Range: Ensures inverter operation on high voltage alternators found on many new vehicle chassis
- Programmable AC Under-Voltage (170-220V) Shutdown: Feature ideal to operate under weak shore power or generator input
- Built in 30A AC Transfer Relay: Senses when outside AC Power is present and transfers the load from the inverter to the source of incoming power
True sine wave 120 Vac inverter with built-in transfer switch. Designed for recreational and commercial applications.. Configure and monitor system performance via Bluetooth app available on the optional Bluetooth remote panel (# 808-0817-02) The Freedom X inverter offers premium performance in a lightweight compact package. It cranks out full output from -20°C - 40°C for operation in all climate temperatures. The extended surge rating of the Freedom X makes it ideal to start difficult loads including fridge and microwave. The quick connect terminals at AC IN/OUT make installation a breeze. Specifications
| ELECTRICAL SPECS - INVERTER | | AC Output Operating Voltage Options | 220/230/240V | | Continuous Output Power | Continuous Power 2000 W @40 C True sine wave (TSW) | | Continuous AC Output Current | 8.3 A | | Surge Power | 4000 W (> 2 sec) | | Frequency (Configurable) | 50 Hz (or 60 Hz) | | DC Input Operating voltage range | 10.0 - 17.0 V | | DC Input Max Non-Operating Voltage | 25.2 V | | DC Input Nominal Voltage (inverting) | 12.0 V | | DC Nominal Current at Full Load | 192 A | | Peak Efficiency | 91% | | Full Load Efficiency | > 87.5% | | GENERAL SPECS | | Operating Temperature Range | -20 to 60 C, with output derated above 40 °C | | Storage Temperature Range | -40 to 70 C | | Operating Humidity Range | 5 to 95% RH, non-condensing | | Operating Input AC Pass-Through Voltage Range | 170-280V | | Safe Non-Operating Input AC Voltage Range | Up to 300V | | Transfer Relay AC Current Rating | 30 A , 24 A continous | | L x W x H (without flanges) | 370 mm x 275 mm x 100 mm | | L x W x H (with flanges) | 370 mm x 305 mm x 100 mm | | Net Weight | 7.2 kgs | | REGULATORY APPROVALS | | Safety | CE Marking, Low Voltage Directive Compliant (Marine installations, drip shield, 808-1050) | | EMC | CE Marking, EMC Directive and Automotive EMC - Regulation 10 R-06 Compliant | | Environmental | CE Marking, RoHS Directive Compliant |
What's in the Box:- Freedom X 2000 230v
- Documentation
- one set of plastic bushings for large DC cables
- one pre-installed DC earth enclosure lug (not shown)
- one bonding screw
|
|
