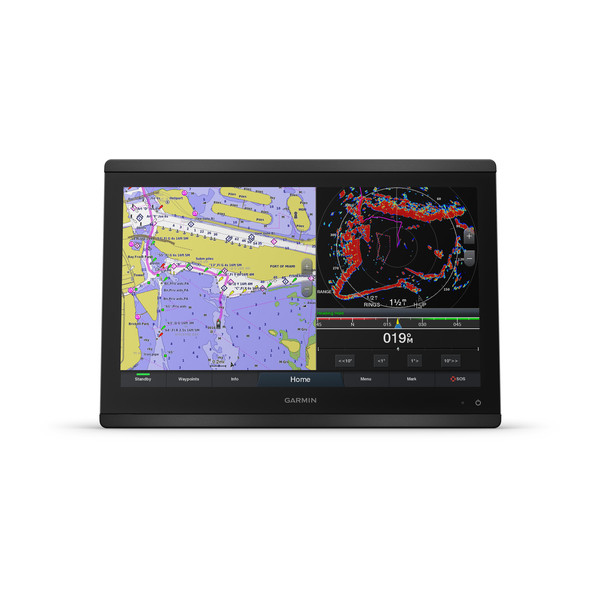

  Garmin GPSMAP8616 16" Plotter with US and Canada GN+
Click to enlarge

Garmin GPSMAP8616 16" Plotter with US and Canada GN+

Item #: GAR010-02093-50



Quantity:

Price:

$5,599.99



Free Shipping Available!


In Stock - Ships the next business day.
No restocking fees on return.

Click to verify BBB accreditation and to see a BBB report.

Details:

Garmin GPSMAP8616 16" Plotter Garmin Navionics+ coastal and inland water charts for the U.S. and Canada

Model: 010-02093-50
  • Features a 16" full HD in-plane switching touchscreen display for wider viewing angles, superior clarity and sunlight readability, even with polarized sunglasses
  • Adds a stunning appearance with ability to install multiple displays either flat mounted edge- to-edge to create a sleek glass helm look or mounted flush
  • Fully network capable with NMEA 2000® connectivity and the Garmin Marine Network to easily build your marine system — from sonar, radar and autopilots to instruments, cameras and multimedia
  • ANT® connectivity and Wi-Fi® networking let you connect with your compatible quatix® smartwatches, gWind™ Wireless 2 wind sensor and more
  • For full control of your boat on your chartplotter screen, use our exclusive OneHelm™ feature to connect to many third-party devices
  • See RPMs, fuel flow, temperature, trim and more for up to four of your compatible Mercury® engines by using the SmartCraft® Connect gateway
  • Preloaded Garmin Navionics+™ coastal charts and inland mapping feature Auto Guidance+™ technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations) ; plus, there’s support for optional Garmin Navionics Vision+™ premium map content.
  • Compatible with the live sonar PS51 transducer with FrontVü™ forward-looking sonar, which helps you avoid running aground
  • SmartMode™ station controls enable presets for one-touch access to docking, cruising, fishing, anchoring and more
  • Built-in Garmin SailAssist™ features provide data, displays and prerace guidance needed to gain a competitive edge
  • Use built-in Wi-Fi® networking to pair with the free ActiveCaptain® smartphone app for access to the OneChart™ feature, smart notifications, Garmin Quickdraw™ Community data and more.
  • Dual microSD™ card slots on back of unit for use with the ActiveCaptain® app and cartography cards

The GPSMAP®8616 chartplotter features a 16" full HD in-plane switching touchscreen display for wider viewing angles, superior clarity and sunlight readability, even with polarized sunglasses. Experience superior connectivity and networking solutions with complete control of your entire system, right at your fingertips. The device is preloaded with Garmin Navionics+™coastal charts and inland mapping that feature Auto Guidance+™technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations). Plus, there’s support for optional Garmin Navionics Vision+™premium map content. The chartplotter includes a premium-performance processor for our fastest map drawing, superior networking, video distribution and more. Multiple displays can be flat mounted edge-to-edge to create a sleek glass helm look or mounted flush. NMEA 2000®networking and the Garmin Marine Network allow you to build your full marine electronics suite — from radar and autopilots to cameras and instruments — controlled from your chartplotter and shared across multiple screens. With SmartMode™station controls, everything is designed to give you quick, one-touch access to the information you need to ease high-stress situations such as docking. For full control of your boat on your chartplotter screen, use our exclusive OneHelm™feature to connect to many compatible third-party devices. Built-in Garmin SailAssist™features provide data, displays and prerace guidance needed to gain a competitive edge. Download the ActiveCaptain® smartphone app to your smartphone or tablet to manage your marine experience from anywhere — from trip planning and prefishing to purchasing, downloading and updating maps. See RPMs, fuel flow, temperature, trim and more for up to four of your compatible Mercury®engines by using the SmartCraft®Connect gateway.

Specifications
General
Physical dimensions15.1" x 10.3" x 3" (38.5 cm x 26.3 cm x 7.6 cm)
Weight9.6 lbs (4.4 kg)
Water ratingIPX6 and IPX7
Display typetouchscreen IPS display (anti-glare finish)
Display size13.6" x 7.7" (34.5 cm x 19.5 cm)
Display resolutionFHD; 1920 x 1080 pixels
Power consumption3.5 A
AntennaInternal or external over NMEA 2000
Mounting optionsFlat and flush, bail with optional accessory (Garmin does not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.)
Receiver10 Hz GPS/GLONASS/Galileo
Garmin Marine Network™ ports2
Maps & Memory
Accepts data cards2 microSD cards (on back)
Waypoints5,000
Routes100 (250 waypoints each)
Track log50,000 points; 50 saved tracks
pre-loaded mapsGarmin Navionics+ coastal and inland water charts for the U.S. and Canada
Outdoor Recreation Features
Tide tablesYes
Chartplotter Features
Garmin Radar compatibleYes
Garmin Sonar compatibleYes
Garmin SmartMode compatible (customizable monitor presets)Yes
Supports AIS (tracks target ships position)Yes
Supports DSC (displays position data from DSC-capable VHF radio)Yes
Supports FUSION-Link™ compatible radiosYes
GSD™ Black Box sonar supportYes
GCV™ Black Box sonar supportYes
ActiveCaptain compatibleYes
Garmin Helm compatibleYes
GRID™ (Garmin Remote Input Device) compatibleYes
Wireless remote compatibleYes
Sonar Features & Specifications
Dual-frequency (50/200 kHz) sonar capableYes (with external black box, sold separately)
Dual-beam (77/200 kHz) sonar capableYes (with external black box, sold separately)
Frequencies supportedNA
Transmit powerNA
CHIRP sonar technologyYes_(when_connected_to_another_compatible_sonar_device)
ClearVüyes (with GCV™ black box, sold separately)
SideVüyes (with GCV™ black box, sold separately)
Maximum depthNA
Connections
NMEA 2000® compatibleYes
Transducer pin numbersna
NMEA 0183 input ports1 differential
NMEA 0183 output ports1 differential
Video input ports1 - BNC composite
1 - HDMI (HDCP compliant)
Video output ports1 HDMI
Wireless connectivityYes

What's in the Box:
  • GPSMAP 8616 Garmin Navionics+ coastal and inland water charts for the U.S. and Canada
  • Power cable
  • NMEA 2000® drop cable
  • NMEA 2000 T-connector
  • Documentation
  • Flush mount kit
  • Sun cover
  • Trim piece snap covers
