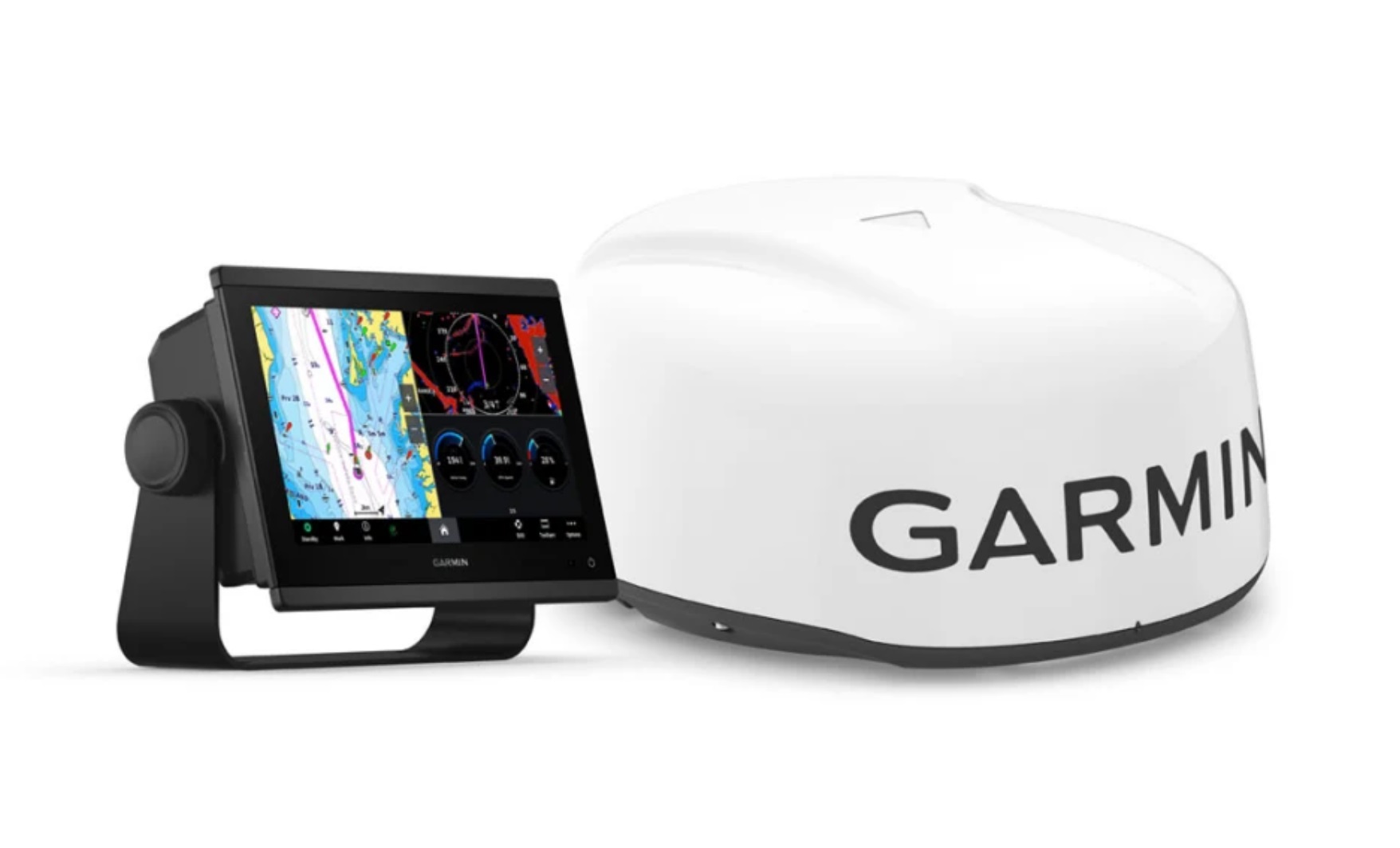

Garmin GPSMAP® 923xsv SideVü, ClearVü and Traditional CHIRP Sonar with Worldwide Basemap with GMR18 HD3 Radar Dome Model: 010-02366-52
- Easily integrate with more engines.
- Connect to compatible third-party devices with OneHelm™ digital switching.
- Easily build your marine system using the best of network connectivity.
- Compatible with premium maps and charts for the best in Garmin navigation.
- See below your boat with built-in sonar capabilities.
- Manage your marine experience from nearly anywhere2.
With 50% more touchscreen pixels and nearly double the processing power of previous-generation 9" GPSMAP devices, this crisp chartplotter/sonar combo with high-resolution IPS display integrates seamlessly into your Garmin marine system. Get built-in Ultra High-Definition SideVü and ClearVü scanning sonars with vivid, high-contrast color palettes to help distinguish fish from structure. GPSMAP 923xsv also supports 1 kW CHIRP traditional sonar capabilities. Pair with Panoptix or Panoptix LiveScope™ easy-to-interpret live sonar (transducer sold separately) to see all around your boat in real time. With its added processing power and new slimline design featuring edge-to-edge glass and a smaller unit footprint, it’s easy to retrofit this 9" plotter in a wider range of dash configurations. New higher-resolution 9" IPS displays offer improved sunlight readability and visibility from any angle, with 50% more pixels than previous-generation 9" GPSMAP devices. These optional charts offer the best of Garmin and Navionics® data, Auto Guidance3 technology and other premium navigation features. This exclusive feature brings together all the operations and capabilities of select third-party devices, such as EmpirBus™ digital switching, on one screen. If you have multiple compatible Garmin devices on your boat, you can share information — such as maps, user data, radar and IP camera video — among them. Connect to compatible autopilots, digital switching, weather, Fusion-Link™ audio system, media, VHF, AIS and more from one screen. Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications, software updates, Garmin Helm™ digital switching, Garmin Quickdraw™ Community data and more4. Connect with some of your favorite devices, such as quatix® marine watches, gWind™ Wireless 2 transducers, GNX™ Wind marine instruments and wireless remote controls. Now you can connect your chartplotter to different kinds of engines, including select Yamaha engines. Specifications
| General | | PHYSICAL DIMENSIONS | 9.2" x 6.4" x 3" (23.3 x 16.2 x 7.6 cm) | | DISPLAY SIZE | 7.8" x 4.4"; 9.0" diagonal | | DISPLAY RESOLUTION | 1280 x 720 pixels | | DISPLAY TYPE | WXGA display | | WEIGHT | 3.6 lbs (1.6 kg) | | WATER RATING | IPX7 | | POLARIZED SUPPORT | Yes | | POWER CONSUMPTION | Max power usage at 10 Vdc: 22 W
Typical current draw at 12 Vdc: 1.3 A
Max current draw at 12 Vdc: 1.8 A | | ANTENNA | Internal or external over NMEA 2000 | | MOUNTING OPTIONS | Bail, flush or flat | | RECEIVER | 10 Hz high-sensitivity | | GARMIN MARINE NETWORK™ PORTS | 1 | | TRANSMIT POWER | 1 kW traditional; 1 kW CHIRP | | Maps & Memory | | PRELOADED MAPS | worldwide basemap | | ACCEPTS DATA CARDS | 2 microSD™ cards (back of unit) | | WAYPOINTS | 5,000 | | TRACK LOG | 50,000 points; 50 saved tracks | | ROUTES | 100 | | Outdoor Recreation | | TIDE TABLES | Yes | | Chartplotter Features | | GARMIN RADAR COMPATIBLE | Yes | | GARMIN SONAR COMPATIBLE | Yes (built-in) | | GARMIN SMARTMODE COMPATIBLE (CUSTOMIZABLE MONITOR PRESETS) | Yes | | SUPPORTS AIS (TRACKS TARGET SHIPS POSITION) | Yes | | SUPPORTS DSC (DISPLAYS POSITION DATA FROM DSC-CAPABLE VHF RADIO) | Yes | | SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS | Yes | | GSD™ BLACK BOX SONAR SUPPORT | Yes | | GCV™ BLACK BOX SONAR SUPPORT | Yes | | ACTIVECAPTAIN COMPATIBLE | Yes | | GRID™ (GARMIN REMOTE INPUT DEVICE) COMPATIBLE | Yes | | WIRELESS REMOTE COMPATIBLE | Yes | | SAILING FEATURES | Yes | | Sonar Features & Specifications | | DUAL-FREQUENCY (50/200 KHZ) SONAR CAPABLE | Yes | | DUAL-BEAM (77/200 KHZ) SONAR CAPABLE | Yes | | FREQUENCIES SUPPORTED | Traditional: 50/77/83/200 kHz
CHIRP (low, medium, high)
ClearVü (260/455/800 kHz)
(dependent on transducer) | | CHIRP SONAR TECHNOLOGY | Yes (Built-in) | | CLEARVü | Yes with CHIRP (built-in) | | SIDEVü | Yes with CHIRP (built-in) | | MAXIMUM DEPTH | 5,000 ft at 1kW (depth capacity is dependent on water bottom type and other water conditions) | | BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP) | Yes | | WATER TEMPERATURE LOG AND GRAPH | Yes | | SONAR RECORDING | Yes | | SONAR HISTORY REWIND | Yes | | Connections | | NMEA 2000® COMPATIBLE | Yes | | TRANSDUCER PIN NUMBERS | 12-pin (orange) | | NMEA 0183 INPUT PORTS | 1 (Differential) | | NMEA 0183 OUTPUT PORTS | 1 (Differential) | | VIDEO INPUT PORTS | 1 BNC | | WIRELESS CONNECTIVITY | Yes | | J1939 COMPATIBLE | Yes |
What's in the Box:- GPSMAP 923xsv chartplotter
- microSD™ card preinstalled
- Power cable
- NMEA 2000® T-connector
- NMEA 2000 drop cable (2 meters)
- Bail mount kit with knobs
- Flush mount kit with gasket
- Protective cover
- Trim piece snap covers
- Documentation
- 8-pin transducer to 12-pin sounder adapter cable
- GMR 18 HD3 radome
- Mounting hardware kit
- Power cable (15 m)
- Network cable (15 m)
- Installation instructions
|
