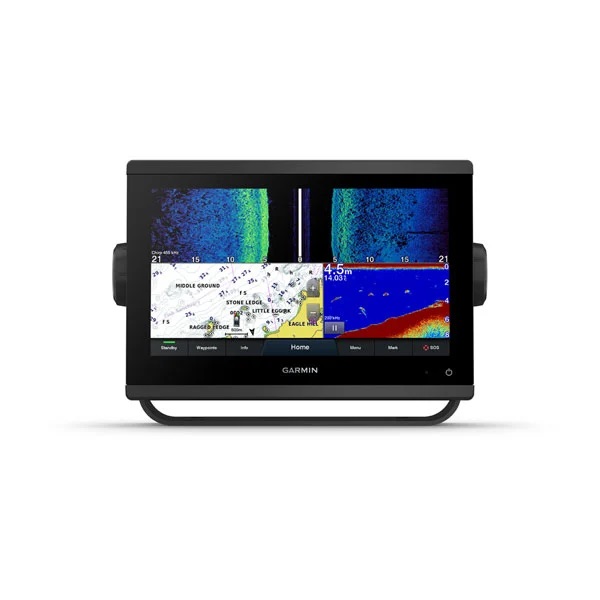

Garmin GPSMAP® 923xsv SideVü, ClearVü and Traditional CHIRP Sonar with Worldwide Basemap Model: 010-02366-02
- Easily integrate with more engines.
- Connect to compatible third-party devices with OneHelm™ digital switching.
- Easily build your marine system using the best of network connectivity.
- Compatible with premium maps and charts for the best in Garmin navigation.
- See below your boat with built-in sonar capabilities.
- Manage your marine experience from nearly anywhere2.
With 50% more touchscreen pixels and nearly double the processing power of previous-generation 9" GPSMAP devices, this crisp chartplotter/sonar combo with high-resolution IPS display integrates seamlessly into your Garmin marine system. Get built-in Ultra High-Definition SideVü and ClearVü scanning sonars with vivid, high-contrast color palettes to help distinguish fish from structure. GPSMAP 923xsv also supports 1 kW CHIRP traditional sonar capabilities. Pair with Panoptix or Panoptix LiveScope™ easy-to-interpret live sonar (transducer sold separately) to see all around your boat in real time. With its added processing power and new slimline design featuring edge-to-edge glass and a smaller unit footprint, it’s easy to retrofit this 9" plotter in a wider range of dash configurations. New higher-resolution 9" IPS displays offer improved sunlight readability and visibility from any angle, with 50% more pixels than previous-generation 9" GPSMAP devices. These optional charts offer the best of Garmin and Navionics® data, Auto Guidance3 technology and other premium navigation features. To help you avoid weather and traffic on the water, the compact 4 kW GMR™ 18 HD+ dome radar is available as a bundled option with your GPSMAP chartplotter/sonar package. If you have multiple compatible Garmin devices on your boat, you can share information — such as maps, user data, radar and IP camera video — among them. Connect to compatible autopilots, digital switching, weather, Fusion-Link™ audio system, media, VHF, AIS and more from one screen. Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications, software updates, Garmin Helm™ digital switching, Garmin Quickdraw™ Community data and more4. Connect with some of your favorite devices, such as quatix® marine watches, gWind™ Wireless 2 transducers, GNX™ Wind marine instruments and wireless remote controls. Now you can connect your chartplotter to different kinds of engines, including select Yamaha engines. This exclusive feature brings together all the operations and capabilities of select third-party devices, such as EmpirBus™ digital switching, on one screen. Specifications
General | PHYSICAL DIMENSIONS | 9.2" x 6.4" x 3" (23.3 x 16.2 x 7.6 cm) | DISPLAY SIZE | 7.8" x 4.4"; 9.0" diagonal | DISPLAY RESOLUTION | 1280 x 720 pixels | DISPLAY TYPE | WXGA display | WEIGHT | 3.6 lbs (1.6 kg) | WATER RATING | IPX7 | POLARIZED SUPPORT | Yes | POWER CONSUMPTION | Max power usage at 10 Vdc: 22 W Typical current draw at 12 Vdc: 1.3 A Max current draw at 12 Vdc: 1.8 A | ANTENNA | Internal or external over NMEA 2000 | MOUNTING OPTIONS | Bail, flush or flat | RECEIVER | 10 Hz high-sensitivity | GARMIN MARINE NETWORK™ PORTS | 1 | TRANSMIT POWER | 1 kW traditional; 1 kW CHIRP | Maps & Memory | PRELOADED MAPS | worldwide basemap | ACCEPTS DATA CARDS | 2 microSD™ cards (back of unit) | WAYPOINTS | 5,000 | TRACK LOG | 50,000 points; 50 saved tracks | ROUTES | 100 | Outdoor Recreation | TIDE TABLES | Yes | Chartplotter Features | GARMIN RADAR COMPATIBLE | Yes | GARMIN SONAR COMPATIBLE | Yes (built-in) | GARMIN SMARTMODE COMPATIBLE (CUSTOMIZABLE MONITOR PRESETS) | Yes | SUPPORTS AIS (TRACKS TARGET SHIPS POSITION) | Yes | SUPPORTS DSC (DISPLAYS POSITION DATA FROM DSC-CAPABLE VHF RADIO) | Yes | SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS | Yes | GSD™ BLACK BOX SONAR SUPPORT | Yes | GCV™ BLACK BOX SONAR SUPPORT | Yes | ACTIVECAPTAIN COMPATIBLE | Yes | GRID™ (GARMIN REMOTE INPUT DEVICE) COMPATIBLE | Yes | WIRELESS REMOTE COMPATIBLE | Yes | SAILING FEATURES | Yes | Sonar Features & Specifications | DUAL-FREQUENCY (50/200 KHZ) SONAR CAPABLE | Yes | DUAL-BEAM (77/200 KHZ) SONAR CAPABLE | Yes | FREQUENCIES SUPPORTED | Traditional: 50/77/83/200 kHz CHIRP (low, medium, high) ClearVü (260/455/800 kHz) (dependent on transducer) | CHIRP SONAR TECHNOLOGY | Yes (Built-in) | CLEARVü | Yes with CHIRP (built-in) | SIDEVü | Yes with CHIRP (built-in) | MAXIMUM DEPTH | 5,000 ft at 1kW (depth capacity is dependent on water bottom type and other water conditions) | BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP) | Yes | WATER TEMPERATURE LOG AND GRAPH | Yes | SONAR RECORDING | Yes | SONAR HISTORY REWIND | Yes | Connections | NMEA 2000® COMPATIBLE | Yes | TRANSDUCER PIN NUMBERS | 12-pin (orange) | NMEA 0183 INPUT PORTS | 1 (Differential) | NMEA 0183 OUTPUT PORTS | 1 (Differential) | VIDEO INPUT PORTS | 1 BNC | WIRELESS CONNECTIVITY | Yes | J1939 COMPATIBLE | Yes |
What's in the Box:- GPSMAP 923xsv chartplotter
- microSD™ card preinstalled
- Power cable
- NMEA 2000® T-connector
- NMEA 2000 drop cable (2 meters)
- Bail mount kit with knobs
- Flush mount kit with gasket
- Protective cover
- Trim piece snap covers
- Documentation
- 8-pin transducer to 12-pin sounder adapter cable
|
