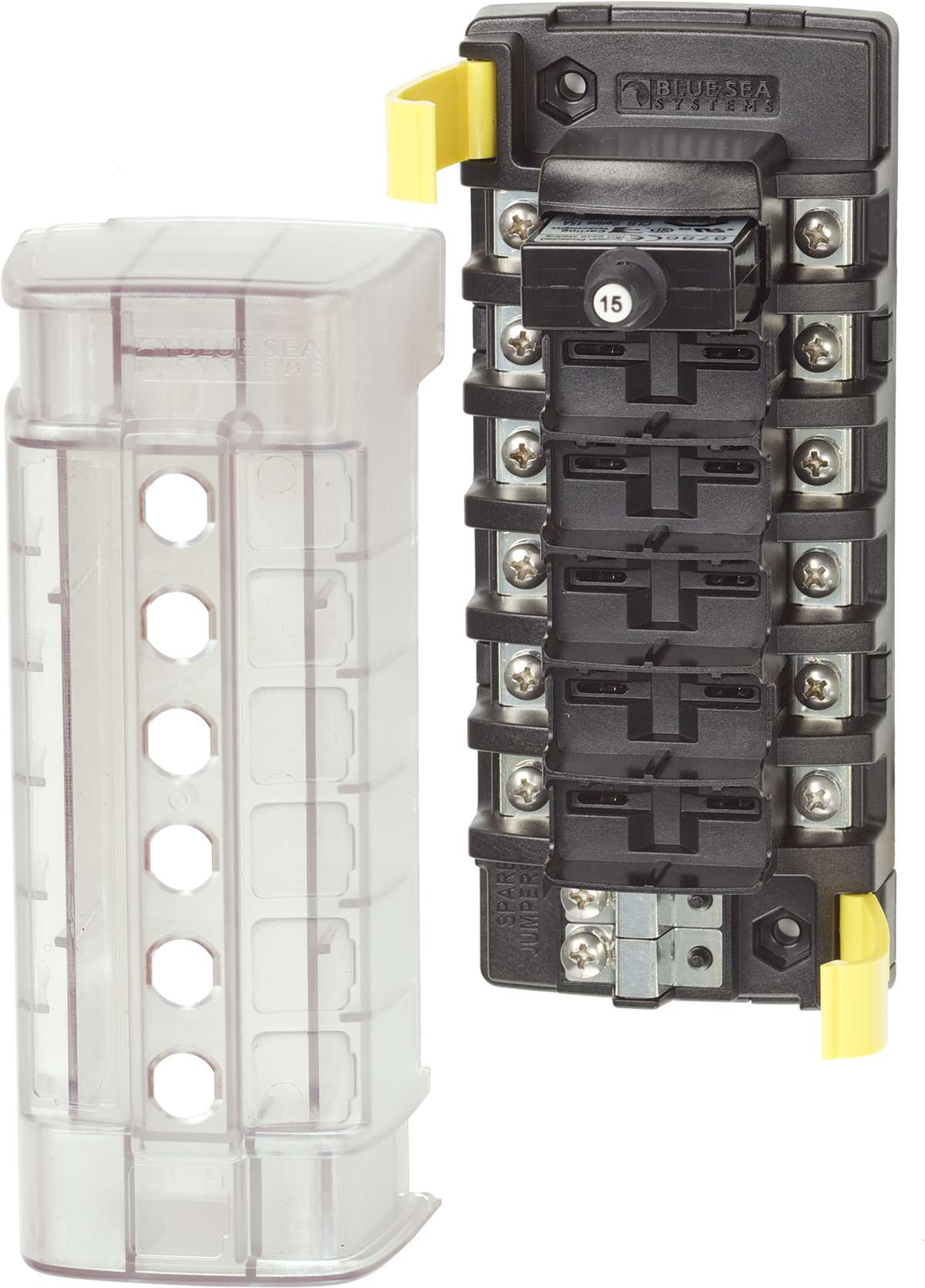

Blue Sea ST CLB Circuit Breaker Block - 6 Independent Circuits
Model: 5050-BSS
Quick connect clips allow circuit breakers to snap easily into place
Tin-plated copper busses and screw terminals
Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
Easy to open clip on cover
Breakouts allow wire access in two directions
Accepts ring terminals
Optional push button waterproof boots or dress nuts can be installed over cover
Accepts square labels
The advantage of a resettable circuit breaker over a fuse is well known however people find circuit breakers more expensive and difficult to install. The ST CLB Circuit Breaker Block solves this issue by using the compact, snap-in-place CLB resettable circuit breaker which makes breakers as easy to install as a fuse.
The ST CLB Circuit Breaker Block offers flexible resettable circuit protection for 6 circuits in a surface mount block that is easy to mount in a dry and protected location. A natural companion for waterproof switching is the new WD Switch Only Panel, that will keep circuits protected from spray and offer integrated switch guards to reduce the risk of accidental switching.
Specifications
Circuits
6
Maximum Amperage
32A (per circuit) 40A (per jumped circuit group)
Maximum Voltage
32V DC
Source
Independent Source
Mounting Centers
5.63in (143 mm)
