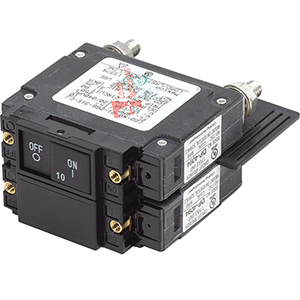

Suitable for use when UL-489 specifications are required (Navy, Army, or Coast Guard vessels, and other vessels covered under CFR 46)
Specifications:
Amperage: 10A AC
Actuator Style: Flat Rocker
Poles: 2
Maximum Voltage: 240V AC
Circuit Breaker Type: Magnetic Hydraulic—Trip free
Terminal Stud Torque: 35 in-lb (3.95 Nm)
Interrupt Capacity: 5000A
Minimum Operating Temperature: -40° C
Maximum Operating Temperature: 85° C
Mounting Screw: #6-32 SS
Mounting Screw Torque: 8 in-lb (0.9 Nm)
Switching Cycles: 10000
Weight: 0.23lb (0.1 kg)
