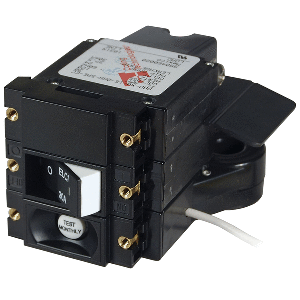

A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A - Flat Rocker
Features:
Provides over current and leakage protection per ABYC E-11 for whole boat shore power protection
Meets UL 1500 external ignition protection requirements
Trips on short circuit, overload, or leakage to ground
Front panel mount—installed in a power distribution panel
Specifications:
Amperage: 30A
Actuator Style: Flat Rocker
Poles: 2
Ignition Protected: Yes
Max Voltage: 240VAC/120VAC per pole
Circuit Breaker Type: Magnetic Hydraulic - trip free
Interrupt Capacity: 5000A
Minimum Operating Temperature: -35 degrees C
Max Operating Temperature: 65 degrees C
Leakage Trip Amps: 30mA
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
