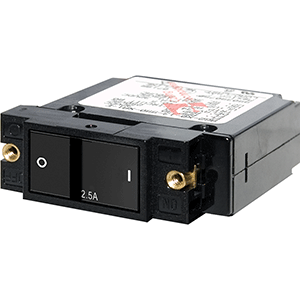

A-Series Flat Rocker Circuit Breaker - Single Pole - 2.5A
Rocker actuator is flush in the "ON" position, eliminating the risk of accidential switching
Color actuator indicates "OFF" position
"Trip Free" design cannot be held "ON" during fault current condition
2 different actuator styles available
Prevents accidental switching of 24 hour circuits
International ON/OFF symbols support vertical or horizontal mounting
Specifications:
Amperage: 2.5A DC / 2.5A AC
Actuator Style: Flat Rocker
Poles: 1
Max Voltage:250V AC / 32V DC
Circuit Breaker Type: Magnetic Hydraulic - Trip Free
Interrupt Capacity: 3000A @ 125V AC / 1500A @ 250V AC / 5000A @ 32V DC
Minimum Operating Temperature:-40° C
Maximum Operating Temperature:85° C
Mounting Screw: #6-32 Stainless Steel
Mounting Screw Torque: 6 in-lb (0.68 Nm)
Screw Terminal Torque14 in-lb (1.58 Nm)
Switching Cycles: 10000
Terminal Screw: #10-32 Stainless Steel
Weight: 0.21lb (0.1 kg)
