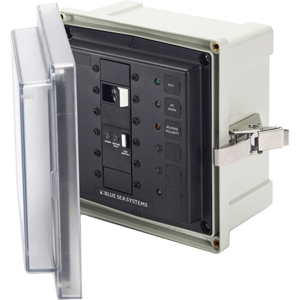

SMS Surface Mount System Panel Enclosure - 120/240V AC / 50A ELCI Main - 1 Blank Circuit Position
Panel enclosure for ELCI Main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10 feet of the shore power inlet.
Features:
Includes one 120/240V AC / 50A ELCI Main and one blank position
Blank apertures for custom breaker loading
Glass filled polycarbonate mounting box
Clear cover allows easy view of circuit breaker status
Overlapping cover for strength and increased gasket protection
Oversized, formed in place seamless PUR gasket
Easily removable stainless steel hinge pin for unobstructed installation
Stainless steel latch secures cover without penetrating the enclosure
Blank circuit positions accommodate Carling Technologies A- and C- Series Flat Rocker and ELCI Main circuit breakers
Stainless steel mounting hardware included
Includes waterproof glands
LED lights for back lighting and ON indication
Specifications:
Minimum Operating Temperature: -40 degrees C
Maximum Operating Temperature: 85 degrees C
Cover Screws and Hardware: 10-32 Stainless Steel
Enclosure Size: 6.0" x 6.0" x 4.0" (152mm x 152mm x 102mm)
Exterior Overall Dimensions: 7.6" x 7.4" x 4.7" (192mm x 188mm x 120mm)
Mounting Hardware: 1/4" Diameter, #12 (6 mm)
Weight: 6.95lb (3.15 kg)
