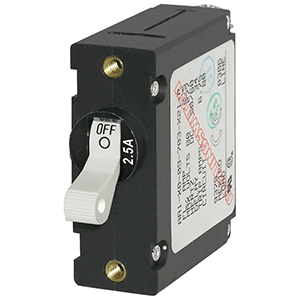

A-Series White Toggle Circuit Breaker - Single Pole 2.5A
Meets American Boat and Yacht Council (ABYC) standards
The industry standard circuit breaker for Blue Sea Systems" electrical panels
Combines swtiching and circuit protection into a single device
"Trip Free" design cannot be held "ON" during fault current condition
Specifications:
Amperage: 2.5A AC / 2.5A DC
Color: White
Actuator Style: Toggle
Poles: 1
Maximum Voltage: 250V AC / 65V DC
Circuit Breaker Type: Magnetic Hydraulic - trip free
Interrupt Capacity: 3000A @ 120V AC / 1500A @ 250V AC [TUV] / 3000A @ 250V AC [UL 1077] / 7500A @ 65V DC
Minimum Operating Temperature: -40° C
Maximum Operating Temperature: 85° C
Mounting Screw: #6-32 Stainless Steel
Mounting Screw Torque: 6 in-lb (0.68 Nm)
Screw Terminal Torque: 14 in-lb (1.58 Nm)
Switching Cycles: 10000
Terminal Screw: #10-32 Stainless Steel
Weight: 0.17lb (0.08 kg)
