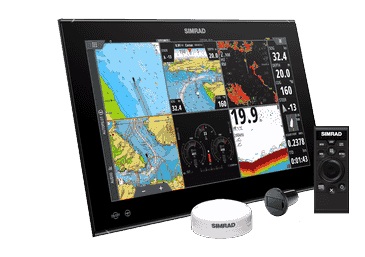

  Simrad NSO EVO3S 19" MFD System Pack
Click to enlarge

Simrad NSO EVO3S 19" MFD System Pack

Item #: SIM000-15127-001



Quantity:

$0.00



Free Shipping Available!

Join our email list and save 5%

Usually ships the next business day.
No restocking fees on return.

Click to verify BBB accreditation and to see a BBB report.

Details:

Simrad NSO evo3S 19" MFD

System Pack

Model: 000-15127-001
  • Ultra-bright, Full HD 16-inch display
  • Easy touchscreen control of your entire Simrad system
  • Integrated quad-core processor for ultimate performance
  • Low-profile glass helm styling
  • See more than ever with six-panel split screen option
  • Connect with smartphones, tablets, and internet hotspots

NSO evo3 delivers the ultimate view with an ultra-bright 19-inch display, ideal for both indoor and outdoor installations. Wide viewing angles keep the screen in view from anywhere in sight, even if you’re wearing polarised sunglasses. See more than ever with Full HD resolution, and the option to combine up to six panels in a split-screen layout.

A responsive, multi-touch display places control of your on-board electronics at your fingertips. Intuitively navigate charts, define waypoints, and take control of connected systems such as autopilot, radar, and sonar with a touch. A range of optional keypads add classic controls, perfect for fine adjustments or use in rough conditions.

Every NSO evo3 display features an integrated quad-core processor for ultimately smooth response, from charting to StructureScan® 3D imaging. Enjoy swift access to the information you need, as you need it, whether you’re cruising the open ocean or carefully navigating a crowded harbour.

NSO evo3 glass helm systems offer the perfect combination of form and function. Create your own custom helm layouts to suit any activity, and switch seamlessly between those layouts in an instant. Low-profile glass helm styling complements any helm design, from ultra-modern to timeless classic.

Built-in wireless connectivity links NSO evo3 to your existing mobile devices for remote viewing and control, and delivers easy online software upgrades via any wireless internet hotspot. Wired Ethernet, NMEA 2000®, and J1939 networking provide almost limitless integration options, from vessel-wide display systems to radar, sonar, engine integration, and much more.

Specifications
Physical
Dimensions 16" WxHxD400.1 x 260 x 83 mm (15.75 x 10.24 x 3.27") With bracket: 474.9 x 307.5 x 222.5 mm (18.7 x 12.1 x 8.76")
Dimensions 19" WxHxD478.1 x 305 x 83 mm (18.82 x 12.01 x 3.27") With bracket: 509.9 x 348 x 214.6 mm (20.08 x 13.7 x 8.45")
Dimensions 24" WxHxD625.1 x 386 x 83 mm (24.61 x 15.29 x 3.27") With bracket: 648.9 x 388.5 x 212.5 mm (25.55 x 15.29 x 8.37")
Weight 16"3.9 kg (8.6 lbs.)
Weight 19"4.8 kg (10.5 lbs.)
Weight 24"7.8 kg (17.2 lbs.)
Compass safe distance50 cm (19.7")
Mounting optionsPanel or bracket mount (use optional heavy duty bracket (000-13547-001)
Environmental
Operating temperature range-15°C to +55°C (5° F to 131° F)
Storage temperature range-20°C to +60°C (4°F to 140°F)
Electrical
Supply Voltage12/24 V DC (10 - 31.2 V DC min - max)
Power consumption (max) 16"40 W +- 4 W
Power consumption (max) 19"50 W +- 4 W
Power consumption (max) 24"80 W +- 4 W
Fuse rating 166 A @ 12 V DC
Fuse rating 197 A @ 12 V DC
Fuse rating 2410 A @ 12 V DC
Connectivity
Ethernet3 x RJ 45, 1 Mbit ports. Adapt to 5 pin yellow using Adapter cable 000-11246-001
WirelessInternal 802.11b/g/n
NMEA20001 x NMEA 2000 Micro-C port, 1 LEN
J19391 x J1939 Micro-C port
NMEA 01832x NMEA0183 (IEC61162-1), 2x NMEA0183-HS (IEC61162-2)
Composite Video In2x composite video (BNC)
HDMI In1x high definition video (1080p, HDCP 1.4, HDMI-A) (Note: will not pass through HDMI, HDCP from HDMI input port)
Internal GPSNo
Storage
External storage1 x Micro SD card slot or use optional USB dash mount card reader with 2 x Micro SD slots. Max. card size 32GB. Larger if formatted to NTFS
Internal storage16 GB
Display
Screen resolution (all sizes)1920x1080
Brightness1200 nits
Screen size and type 16IPS 15.6" optically bonded TFT
Screen size and type 19AHVA 18.5" optically bonded TFT
Screen size and type 24MVA 24" optically bonded TFT
Viewing angles80° top/bottom, 80° left/right
ControlFull touch screen (multi-touch), OP50 remote controllers
Applications
CartographyCompatible with C-MAP (MAX N, MAX N+), Insight, Navionics (Gold, NAV+ Platinum+) , NV Digital (Raster US Charts): CMAP enhanced of U.S.A built in (Rest of world charts required. world base map only)
RadarCompatible with Broadband Radar, Halo Pulse Compression Radar, HD Pulse Radar
SonarCompatible with: SonarHub, S5100, StructureScan3D network echo sounder modules
Autopilot IntegrationFull auto pilot control and commissioning
Autopilot steering modesAuto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail)
Autopilot manoeuvres turn patternsU-turn, Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour tracking
WeatherSiriusXM via WM-3 (USA only), GRIB
AISReceive AIS data over NMEA 2000 Or NMEA 0183 (IAS is not bridged to N2K)
Multimediavia SonicHub2, FusionLink, *Sirius, **JL Audio. (*USA only, **AUST. & NZ only)

What's in the Box:
  • OP50 keypad
  • GS25 GPS antenna
  • two slot micro-SD chart card reader
