Simrad NAC-2 Low-current Core Pack Model: 000-13335-001

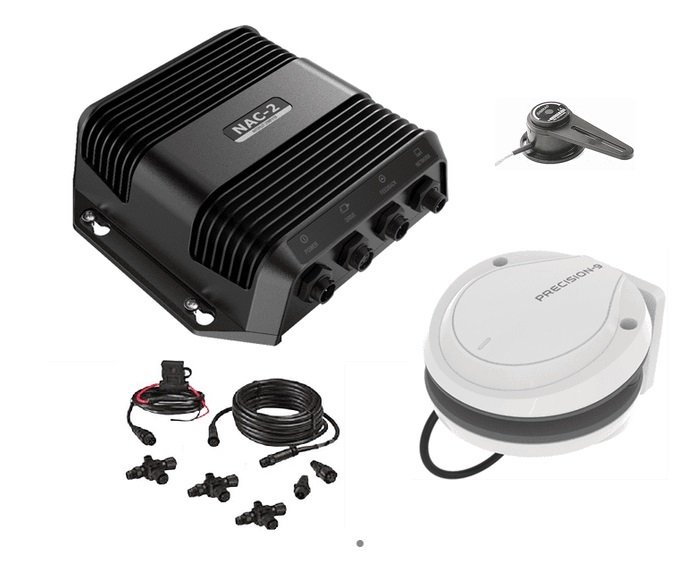

NAC-2 Autopilot Core Pack: Comprising of the high-current NAC-2 autopilot computer, Precision-9 compass and RF-25 rudder feedback unit Ideal for smaller vessels, designed to run small hydraulic drives and mechanical drives for vessels up to 10 meters (33 feet) in length. The NAC-2 Autopilot Computer is the brains behind your autopilot system. NAC-2 contains the control algorithms developed to helm a yacht across a broad range of weather conditions and sea-states, alongside the electronics needed to operate a hydraulic or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-2 was designed for boats up to 10 metres (33 feet) in length and is suitable for low-current hydraulic drives, mechanical drives, or solenoid valves with a current rating of 8 Amps continuous (12 Amps peak). Specifications
| Operating temperature | -25°C to +55°C (13°F to 131°F) | | protection | Splashproof, IPx5 | | Electrical | | Power supply | 9-31.2 V DC | | Load | 140 mA + drive unit load | | Performance | Drive: 8 A cont., 16 A for 1 s | | Interfaces | | network | 1xMicroC (NMEA2000) | | Feedback | Variable voltage/resistive 0-5V | | Drive output | To PUMP-1 or HELM-1 | | Solenoid | 12/24V DC, common, load range 10mA to 10A, off current <1mA | | Clutch | 12/24V DC, min 10mA, max 3A |
What's in the Box:- NAC-2 Autopilot Computer
- PRECISION-9 COMPASS
- RF25N NMEA2000
- N2k Backbone Starter Kit
|
|
