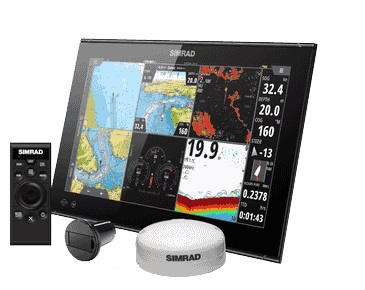

Simrad NSO evo3S 16" MFD System Pack Model: 000-15126-001
- iMX 8 Integrated six-core processor for superior performance
- Ultra-sharp, Full HD 16-inch display
- Seamless touchscreen control of your entire connected SIMRAD® system
- Low-profile glass helm styling
- Extended visibility with six-panel split screen option
- Connect with smartphones, tablets, and internet hotspots
Every NSO evo3S display features the new iMX 8 integrated six-core processor delivering category leading response times for incredibly smooth screen transitions. With up to twice the CPU performance, you have instant access to the information you need, as you need it, no matter the conditions. Create your own custom helm layouts to suit any activity, and switch seamlessly between layouts in an instant. Low-profile glass helm styling conceals and protects NSO evo3’s powerful core, and complements any helm design from ultra-modern to timeless classic. NSO evo3S delivers the ultimate view with an ultra-bright 16-inch display, ideal for both indoor and outdoor installations. Wide viewing angles keep the screen in view from anywhere in sight, even if you’re wearing polarised sunglasses. Experience stunning clarity with Full HD resolution, and the option to combine up to six panels in a split-screen layout. Intuitively navigate charts, define waypoints, and take control of connected systems such as autopilot, radar, and sonar at a touch. Built-in wireless connectivity links NSO evo3S to your existing mobile devices for remote viewing and control, and delivers easy online software upgrades via any wireless internet hotspot. Wired Ethernet, NMEA 2000®, and J1939 networking provide almost limitless integration options, from vessel-wide display systems to radar, sonar, engine integration, and much more. Specifications
| Approvals | | Compliance | CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1 | | Autopilot | | Manouevres / Turn Patterns | U-turn, Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour tracking | | Steering Modes | Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail) | | Connectivity | | Bluetooth | Internal | | Ethernet | 3 x 100 Mbits/s ports, RJ 45. (Adapt to 5 pin yellow using adapter cable 000-11246-001) | | NMEA 0183 | 2x NMEA0183 (IEC61162-1)2x NMEA0183-HS (IEC61162-2) | | NMEA 2000 | 1 x NMEA 2000 Micro-C port, 1 LEN | | PC Connectivity | HDMI Video in from a PC | | Video | 2x composite video (BNC)1x high definition video (1080p, HDCP 1.4, HDMI-A)1x high definition video output (1080p, no HDCP, HDMI-A) | | WiFi | Internal 802.11b/g/n | | Display | | Backlight Color | White | | Resolution | 1920x1080 | | Screen Brightness | 1200 nits | | Size and Type | IPS 15.6" optically bonded TFT | | Viewing Angles | 80° top/bottom, 80° left/right | | Electrical | | Power Consumption, max. | 40 W +- 4 W | | Recommended Fuse Rating | 6 A @ 12 V DC | | Supply Voltage | 10 - 32 V DC | | Environment | | Operating Temperature Range | -15°C to +55°C (5° F to 131° F) | | Shock and Vibration | CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1 | | Storage Temperature Range | "-20°C to +60°C (4°F to 140°F) | | Waterproof rating | IPX6 on the font (when panel mounted correctly with only the front exposed) Rear not waterproof | | MFD | | AIS | Receive AIS data over NMEA 2000 Or NMEA 0183 (IAS is not bridged to N2K) | | Autopilot | Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail). Requires STBY button or Controller with STBY button to commission | | Cartography included | World basemap | | Cartography supported | Insight, Navionics (Gold, NAV+ Platinum+) , C-MAP (MAX N, MAX N+) NV Digital (Raster US Charts) | | Digital Switching | BEP C-Zone, Naviop | | External Storage | 1 Micro SD slot, or use USB Dashmount Card reader MI10 with 2x Micro SD slots. max. 32GB each. >32 GB format to NTFS | | GPS | External GPS required | | Internal Storage | 16 GB | | Multimedia | via SonicHub2, Fusion Link, *Sirius, **JL Audio. *USA only, **AUST. & NZ only) | | Radar (inc. compatibility) | Halo, Broadband, HD Radars | | Sonar (inc. compatibility) | External echo sounder module or connection to an MFD with built in echo sounder that can share sonar over Ethernet is required. | | Weather | SiriusXM via WM-3 (USA only), GRIB | | Waypoints, Routes, Tracks | 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points. | | Compass Safe Distance - Metric, imperial | 50 cm (19.7") | | Physical | | Dimensions (W x H x D) | 400.1 x 260 x 83 mm (15.75 x 10.24 x 3.27") | | With bracket | 474.9 x 307.5 x 222.5 mm (18.7 x 12.1 x 8.76") | | Mounting Type | Panel or Bracket mount (use optional heavy duty bracket 000-13547-001 | | Weight | 3.9 kg (8.6 lbs.) | | Other | | Warranty Period | 2 Years | | Interface | Touch screen, OP40 or OP50 controller via NMEA 2000 |
What's in the Box:- NSO 16 evo3s Display
- Protective Suncover for Simrad 16" Monitors
- Silver and Black bezels
- RJ45M-5 pin Female
- Rear mount bracket
- Cable Retention bracket
- NMEA2000 Power T
- 6' NMEA2000 Cable
- TR-120-Kit Terminator Kit
- 4- Way NMEA2000 Cable
- OP50 Remote
- GS25 GPS Antenna
- MICRO SD CARD READER
|
