Boatersland Marine > GPS/Cartography > Simrad Chart Plotters > Simrad Multifunction Displays > Simrad NSO EVO3S 16" MFD Display Only

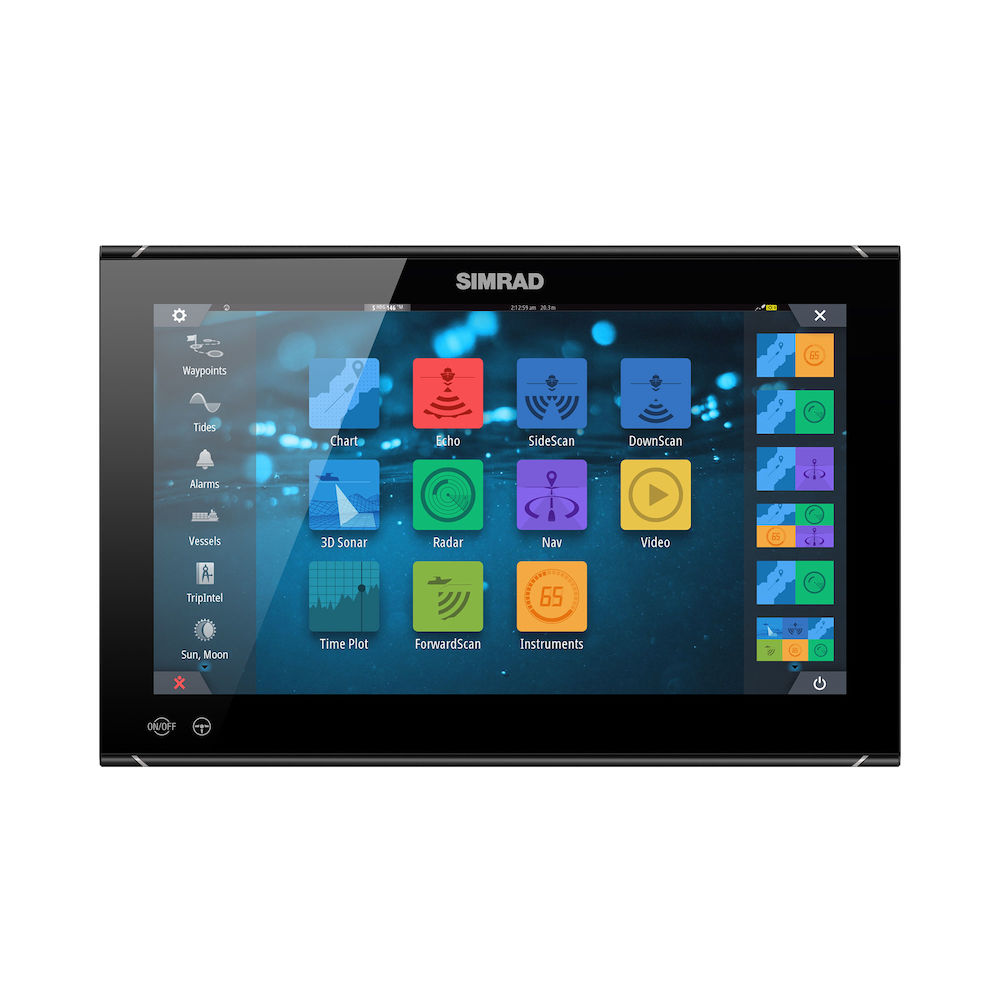

  Simrad NSO EVO3S 16" MFD Display Only
Click to enlarge

Simrad NSO EVO3S 16" MFD Display Only

Item #: SIM000-15047-001



Quantity:

$6,199.00



Free Shipping Available!

Join our email list and save 5%

In Stock - Ships the next business day.
No restocking fees on return.

Click to verify BBB accreditation and to see a BBB report.

Details:

Sign up for our email specials and save 5% on this item!

Simrad NSO evo3S 16" MFD

Display Only

Model: 000-15047-001
  • iMX 8 Integrated six-core processor for superior performance
  • Ultra-sharp, Full HD 16-inch display
  • Seamless touchscreen control of your entire connected SIMRAD® system
  • Low-profile glass helm styling
  • Extended visibility with six-panel split screen option
  • Connect with smartphones, tablets, and internet hotspots

Every NSO evo3S display features the new iMX 8 integrated six-core processor delivering category leading response times for incredibly smooth screen transitions. With up to twice the CPU performance, you have instant access to the information you need, as you need it, no matter the conditions. Create your own custom helm layouts to suit any activity, and switch seamlessly between layouts in an instant. Low-profile glass helm styling conceals and protects NSO evo3’s powerful core, and complements any helm design from ultra-modern to timeless classic.

NSO evo3S delivers the ultimate view with an ultra-bright 16-inch display, ideal for both indoor and outdoor installations. Wide viewing angles keep the screen in view from anywhere in sight, even if you’re wearing polarised sunglasses. Experience stunning clarity with Full HD resolution, and the option to combine up to six panels in a split-screen layout. Intuitively navigate charts, define waypoints, and take control of connected systems such as autopilot, radar, and sonar at a touch.

Built-in wireless connectivity links NSO evo3S to your existing mobile devices for remote viewing and control, and delivers easy online software upgrades via any wireless internet hotspot. Wired Ethernet, NMEA 2000®, and J1939 networking provide almost limitless integration options, from vessel-wide display systems to radar, sonar, engine integration, and much more.

Specifications
Approvals
ComplianceCE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1
Autopilot
Manouevres / Turn PatternsU-turn, Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour tracking
Steering ModesAuto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail)
Connectivity
BluetoothInternal
Ethernet3 x 100 Mbits/s ports, RJ 45. (Adapt to 5 pin yellow using adapter cable 000-11246-001)
NMEA 01832x NMEA0183 (IEC61162-1)2x NMEA0183-HS (IEC61162-2)
NMEA 20001 x NMEA 2000 Micro-C port, 1 LEN
PC ConnectivityHDMI Video in from a PC
Video2x composite video (BNC)1x high definition video (1080p, HDCP 1.4, HDMI-A)1x high definition video output (1080p, no HDCP, HDMI-A)
WiFiInternal 802.11b/g/n
Display
Backlight ColorWhite
Resolution1920x1080
Screen Brightness1200 nits
Size and TypeIPS 15.6" optically bonded TFT
Viewing Angles80° top/bottom, 80° left/right
Electrical
Power Consumption, max. 40 W +- 4 W
Recommended Fuse Rating6 A @ 12 V DC
Supply Voltage10 - 32 V DC
Environment
Operating Temperature Range-15°C to +55°C (5° F to 131° F)
Shock and VibrationCE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1
Storage Temperature Range"-20°C to +60°C (4°F to 140°F)
Waterproof ratingIPX6 on the font (when panel mounted correctly with only the front exposed) Rear not waterproof
MFD
AISReceive AIS data over NMEA 2000 Or NMEA 0183 (IAS is not bridged to N2K)
AutopilotAuto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail). Requires STBY button or Controller with STBY button to commission
Cartography includedWorld basemap
Cartography supportedInsight, Navionics (Gold, NAV+ Platinum+) , C-MAP (MAX N, MAX N+) NV Digital (Raster US Charts)
Digital SwitchingBEP C-Zone, Naviop
External Storage1 Micro SD slot, or use USB Dashmount Card reader MI10 with 2x Micro SD slots. max. 32GB each. >32 GB format to NTFS
GPSExternal GPS required
Internal Storage16 GB
Multimediavia SonicHub2, Fusion Link, *Sirius, **JL Audio. *USA only, **AUST. & NZ only)
Radar (inc. compatibility)Halo, Broadband, HD Radars
Sonar (inc. compatibility)External echo sounder module or connection to an MFD with built in echo sounder that can share sonar over Ethernet is required.
WeatherSiriusXM via WM-3 (USA only), GRIB
Waypoints, Routes, Tracks6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.
Compass Safe Distance - Metric, imperial50 cm (19.7")
Physical
Dimensions (W x H x D)400.1 x 260 x 83 mm (15.75 x 10.24 x 3.27")
With bracket474.9 x 307.5 x 222.5 mm (18.7 x 12.1 x 8.76")
Mounting TypePanel or Bracket mount (use optional heavy duty bracket 000-13547-001
Weight3.9 kg (8.6 lbs.)
Other
Warranty Period2 Years
InterfaceTouch screen, OP40 or OP50 controller via NMEA 2000

What's in the Box:
  • NSO 16 evo3s Display
  • Protective Suncover for Simrad 16" Monitors
  • Silver and Black bezels
  • RJ45M-5 pin Female
  • Rear mount bracket
  • Cable Retention bracket
  • NMEA2000 Power T
  • 6' NMEA2000 Cable
  • TR-120-Kit Terminator Kit
  • 4- Way NMEA2000 Cable
