Simrad

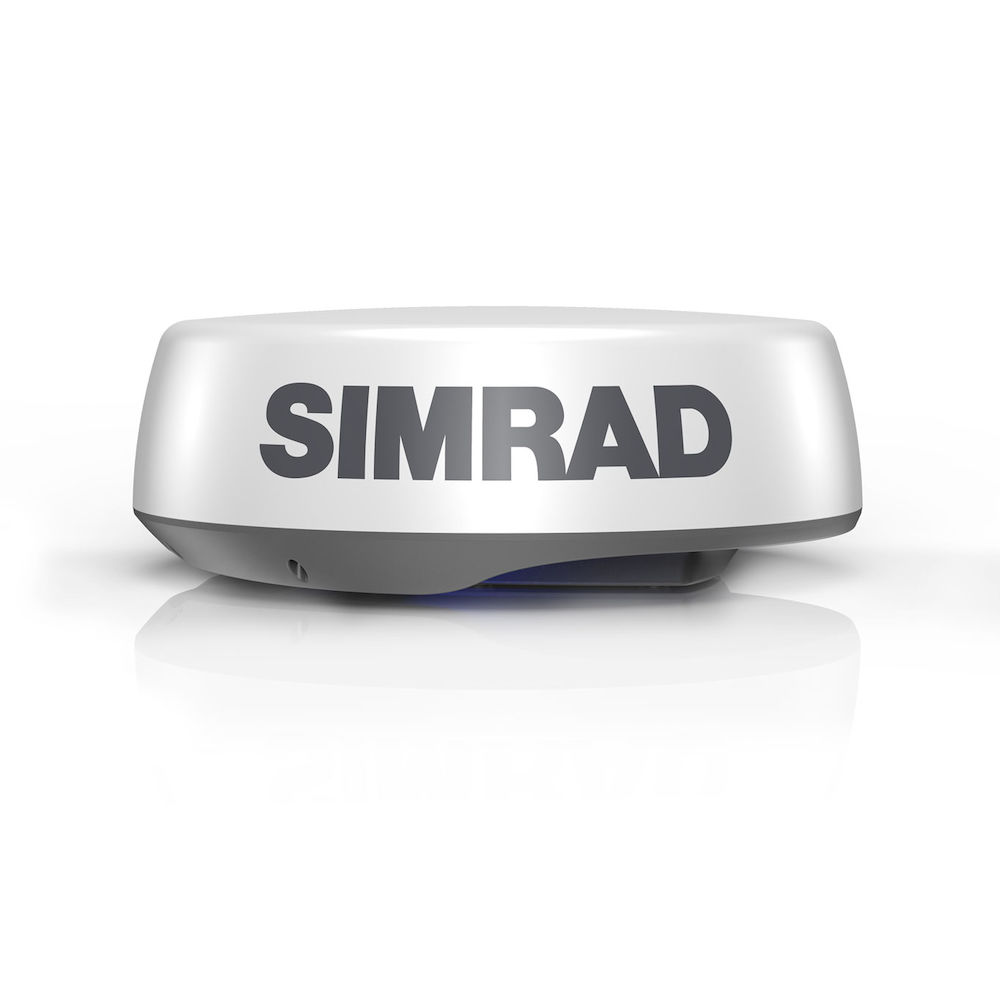

HALO24 24" Radar Dome
HALO24 revolutionizes radar by offering an almost
real-time view, with industry-first 60 RPM operation at close range for the
ultimate in collision avoidance. Identify hazards in an instant with
VelocityTrack Doppler technology, and enjoy simultaneous short and long-range
coverage—up to 48 nautical miles—from one compact 24-inch dome antenna.
Welcome to HALO
HALO24 revolutionizes radar by offering an almost real-time view, with
industry-first 60 RPM operation at close range for the ultimate in collision
avoidance. Identify hazards in an instant with VelocityTrack Doppler technology,
and enjoy simultaneous short and long-range coverage—up to 48 nautical
miles—from one compact 24-inch dome antenna.
See Near and Far with One Compact Dome
Perfect for a wide range of coastal bay boats, HALO24 comes in a compact dome
antenna and delivers high-quality short, mid and long-range detection. Monitor
two distance ranges at once in Dual Range mode which enables you to keep an eye
on far away weather cells while watching for collision hazards up close. HALO24
radar’s pulse compression technology means no compromises in detection at either
selected range, while beam sharpening provides enhanced separation between small
or distant targets.
The Ultimate View for Collision Avoidance
HALO24 radar delivers a full 360 degree sweep every second, thanks to its
industry-first 60 RPM rotation at ranges up to 1.5 nautical miles. These
ultra-fast updates give you an almost real-time view at close range, offering
the ultimate view for collision avoidance.
VelocityTrack Doppler Technology Built-In
VelocityTrack technology provides instant visual feedback on whether targets are
coming towards you or moving away. Simple color coding highlights potential
hazards, improving your situational awareness and further reducing your risk of
collision. HALO24 radar automatically checks every target in range; there’s no
need to manually select individual targets, and no limit to the number of
targets on screen at one time.
Ready When You Are
HALO24 radar wakes instantly from its low-power standby mode, delivering this
high-speed radar coverage exactly when and where you need it. Even if your
HALO24 radar is completely powered down start-up is a matter of seconds, not
minutes like traditional pulse radar. Whether you’re navigating through crowded
waterways or contending with poor visibility, HALO24 radar immediately cuts
through the clutter to give you a clear and current picture of your
surroundings.
Key Features
- 48 nm range from a compact 24-inch dome
- Advanced pulse compression technology with
beam sharpening
- Simultaneous Dual Range operation sees both
near and far
- Ultra-fast 60 RPM operation at ranges up to
1.5 nm
- VelocityTrack Doppler technology for
collision avoidance
- Easy operation with harbour, offshore,
weather, and bird modes
- MARPA target tracking (up to 10 targets, 20
in dual range)
- Ready instantly from standby
Specifications
Ethernet Ports |
100 Base T |
Max Wind Speed |
100 knots (51 m/s) |
Min. Range, scale |
100 m (328 ft) |
Warranty Period |
2 years |
Power Consumption, typical |
20W |
Operating Temperature Range |
-25° to + 55°C (-13° to +130°F) |
Power Consumption, max |
27W |
Beam Width |
3.9° nonminal (-3dB) 2° with target
separation on high |
Max Range, scale |
48 NM |
Recommended Fuse Rating |
5A |
Weight |
6.75 kg (14.9 lbs) without cable |
Dimensions, DxH |
610mm dia x 225 mm H. (24" dia x 8.9" H) |
Supply Voltage |
9 - 31.2 VDC (12/24V systems) |
Humidity |
95% RH at 35°C (95°F) |
Approvals Compliance |
FCC, Part 47 CFR 80 and 90: RED, Article
3 of Directive 99/5/EC: CE: EN, EN302-248 V2.1.1: Industry Canada,
RSS238: RCM (C-Tick): IEC60945 Sec 9.2,9.3, 10.3-10.9, 11.2: IEC60950
Electrical Safety: China SRRC & CCS |
Radar Modes |
Harbour, Offshore, Weather, Bird Dual
Range, North Up Course Up, Relative motion, True Motion |
Waterproof Rating |
IPX6 |
Interface |
Simrad MFD |
Radar Technology |
Pulse Compression |
Rotation Speed |
Up to 60 RPM (Range Dependent) |
What's In the Box
- HALO24,UNBRANDED DOME
- CABLE,10M HALO DOME
- BRAND-DECAL-SIMRAD
- Cable, RJ45 To 5 Pin,1.5m
- RJ45 Waterproofing Boot
|
