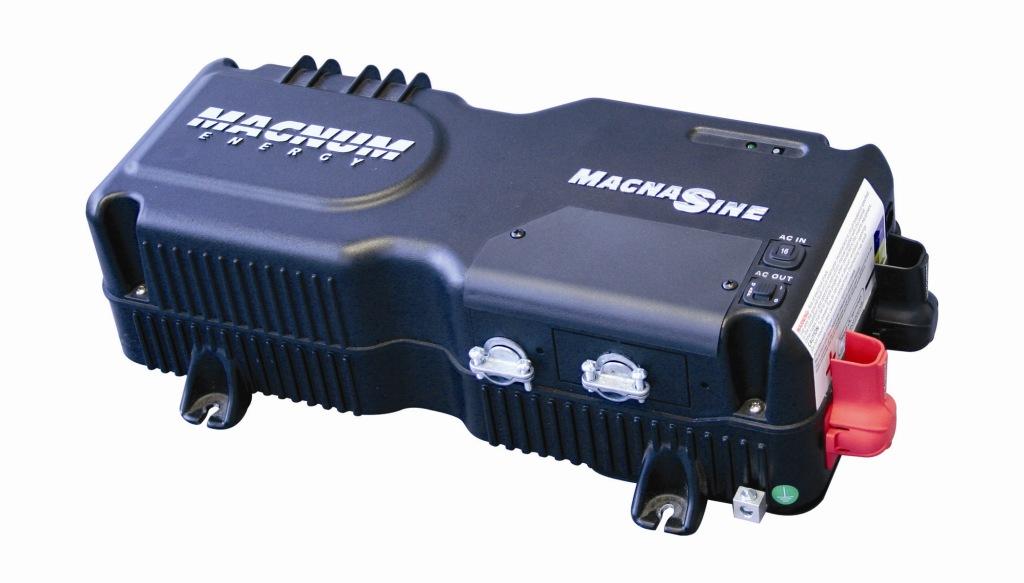

Magnum MMS1012G Inverter/Charger
The MMS Series Inverter/Charger is a pure sine wave inverter providing a cost
effective solution for those with smaller power needs in mobile applications.
Versatile, easy-to-use, and lightweight, the MMS Series provides a reliable base
for your energy system.
Power Factor Corrected (PFC) Charger: Our PFC charger is built into all of
our inverter chargers. It uses less energy from a generator than a standard
charger – using 25-30% less AC current than standard chargers.
Safe and reliable: The MMS Series is ETL Listed to the stringent requirements
of UL/cUL 458 and CSA C22.2 #107.1-01 for mobile use.
Attractive styling: The modern, hourglass case, paired with the die cast
aluminum base combines form with function, creating an attractive unit that uses
its base as a heat sink for superior high temperature operation.
Features:
- Standard transfer relay: The standard 20 amp transfer relay will
pass AC power through the inverter when using shore or generator power.
- Low/high battery protection: If your battery voltage reaches
below 10 VDC or above 15.5 VDC, the MMS Series will automatically shut down.
- Versatile mounting: Mount the MMS Series on a shelf, bulkhead, or
even upside down.
- Fan cooled: The MMS Series is fan cooled, enabling the unit to
work well in confined spaces. If the inverter does exceed its temperature
limits, it will automatically shut down and then restart when it cools down.
- Current overload protection: The MMS Series will automatically
shut down if its output wattage is exceeded or it detects a short in the
wiring, saving the unit from costly damage.
- Convenient switches: The MMS Series comes with an on/off
front-mounted switch with an easy-to-read LED indicator.
- Circuit breaker protection: This model comes with built in input
and output circuit breakers for ease of installation.
- Battery temp sensor: The standard battery temp sensor monitors
temperatures from 0 - 50° C.
Inverter Specifications
Input battery voltage |
9 to 17 VDC |
Nominal AC output voltage |
120 VAC ± 5% |
Output frequency and accuracy |
60 Hz ± 0.1% |
Total Harmonic Distortion (THD) |
< 5% |
1 msec surge current (amps AC) |
38 |
100 msec surge current (amps AC) |
21 |
5 sec surge power (real watts) |
1750 |
30 sec surge power (real watts) |
1600 |
5 min surge power (real watts) |
1200 |
30 min surge power (real watts) |
1050 |
Continuous power output at 25° C |
1000 VA |
Maximum continuous input current |
133 ADC |
Inverter efficiency (peak) |
87% |
Transfer time |
16 msecs |
Search mode (typical) |
5 watts |
No load (120 VAC output, typical) |
19 watts |
Waveform |
Pure Sine Wave |
Charger Specifications
Continuous output at 25° C |
50 ADC |
Charger efficiency |
84% |
Power factor |
> 0.95 |
Input current at rated output (AC amps) |
7 |
General Features and Capabilities
- Transfer relay capability: 20 AAC (input current for charging and pass
through)
- Battery temperature compensation: Yes, 15 ft Battery Temp Sensor
standard
- Internal cooling: 0 to 59 cfm variable speed
- Overcurrent protection with two overlapping circuits
- Overtemperature protection on transformer and MOSFETS
- On/Off with status indicator front mounted and easily accessible
- Low battery cutout 10 VDC, adjustable with the ME-RC remote
- AC output and input Hardwire
- GFCI Outlet NA Standard, with 3 ft cord
- Output circuit breaker 15 A switchable NA
- Input circuit breaker 20 AAC
- Listings ETL Listed to UL/cUL458, CSA C22.2 #107.1-01, meets KKK-A-1822E
standard
- Operating temperature: -20° C to +60° C (-4° F to 140° F)
- Nonoperating temperature: -40° C to +70° C (-40° F to 158° F)
- Operating humidity: 0 to 95% RH non condensing
- Dimensions (l x w x h): 16.6” x 8.4” x 4.7” (42 cm x 21 cm x 12 cm)
- Mounting: Shelf (top or bottom up) or bulkhead (vents up)
- Weight: 23 lb (10.4 kg)
- Max operating altitude: 15,000’ (4570 m)
- Construction: ABS plastic top and cast aluminum bottom
|
|
