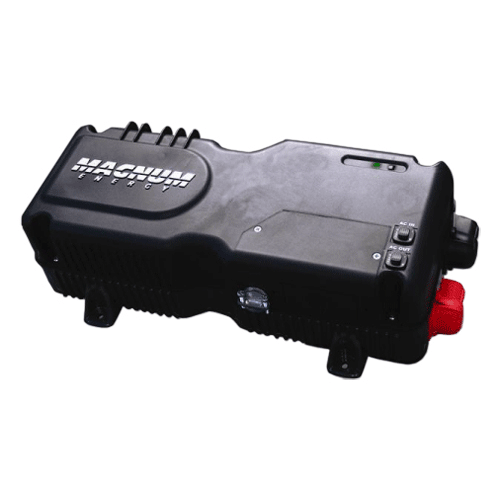

Magnum MM1212 Inverter/Charger
Cost Effective Inverter/Chargers from Magnum Energy
The MM Series Inverter/Charger is a modified sine wave inverter providing a
cost effective solution for those with smaller power needs in mobile
applications. Versatile, easy-to-use, and lightweight, the MM Series provides a
reliable base for your energy system.
Safe and reliable: The MM Series is ETL Listed to the stringent requirements
of UL/cUL 458 and CSA C22.2 #107.1-01 for mobile use.
Attractive styling: The modern, hourglass case, paired with the die cast
aluminum base combines form with function, creating an attractive unit that uses
its base as a heat sink for superior high temperature operation.
Features
- Standard transfer relay: The standard 20 amp transfer relay will pass AC
power through the inverter when using grid or generator power.
- Versatile mounting: Mount the MM Series on a shelf, wall, or even upside
down.
- Fan cooled: The MM Series is fan cooled, enabling the unit to work well
in confined spaces. If the inverter does exceed its temperature limits, it
will automatically shut down and then restart when it cools down.
- Low battery protection: If your battery voltage goes below the cut-out
setting the MM Series will automatically shut down, saving your batteries.
- High battery protection: If your battery voltage reaches over the
cut-out setting the MM Series will shut down.
- Current overload protection: The MM Series will automatically shut down
if its output wattage is exceeded or it detects a short in the wiring,
saving the unit from costly damage.
- Convenient switches: The MM Series comes with an on/off front-mounted
switch with an easy-to-read LED indicator.
- Circuit breaker protection: Every model comes with built in input and
output circuit breakers for ease of installation.
- Battery temp sensor: The standard battery temp sensor monitors
temperatures from 0 - 50° C.
Inverter Specifications
Input battery voltage range |
9 to 15.5 VDC |
Nominal AC output voltage |
120 VAC ± 5% |
Output frequency and accuracy |
60 Hz ± 0.1% |
1 msec surge current (amps AC) |
42 |
100 msec surge current (amps AC) |
23 |
5 sec surge power (real watts) |
2100 |
10 sec surge power (reall watts) |
1900 |
30 sec surge power (real watts) |
1750 |
5 min surge power (real watts) |
1450 |
30 min surge power (real watts) |
1375 |
Continuous power output at 25° C (with
1.0 PF) |
1200 VA |
Continuous current output |
10 AAC |
Maximum continuous input current |
160 ADC |
Inverter efficiency |
95% |
Transfer time |
16 msecs |
No Load (120 VAC output) |
103 ADC |
Waveform |
Modified Sine Wave |
Charger Specifications
Continuous output at 25ºC |
70 ADC |
Charger efficiency |
88% |
Power factor |
>0.95 |
Input current at rated output (AC amps) |
9 |
General Features and Capabilities
- Transfer relay capability 12 AAC
- Battery temperature compensation Yes, on models with chargers: standard
temp sensor (battery temp 0 – 50° C)
- Internal cooling 0 to 59 cfm variable speed
- Overcurrent protection with two overlapping circuits
- Overtemperature protection on transformer and MOSFETS
- On/Off with status indicator front mounted and easily accessible
- Low battery cutout 10 VDC, adjustable on most models with the ME-RC
remote
- AC output and input Hardwire
- Output circuit breaker 15 A switchable
- Input circuit breaker 16 AAC
- Listings ETL Listed to UL/cUL458, CSA C22.2 #107.1-01
- Operating temperature: -20° C to +60° C (-4° F to 140° F)
- Nonoperating temperature: -40° C to +70° C (-40° F to 158° F)
- Operating humidity: 0 to 95% RH non condensing
- Dimensions (l x w x h): 16.6” x 8.4” x 4.7” (42 cm x 21 cm x 12 cm)
- Mounting: Shelf (top or bottom up) or bulkhead (vents up)
- Max operating altitude: 15,000’ (4570 m)
- Construction: ABS plastic top and cast aluminum bottom
|
|
