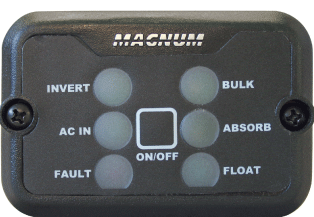

Magnum MM-RC Remote Control
The MM-RC remote control is designed to be simple to install and use. It
allows easy control and provides a quick indication of the inverter and charger
operation of the MM Series, MM-AE Series and MMS series inverter/chargers.
The Magnum Remote is designed to be simple to use while offering full menu
features for set-up.
This remote has an ON/OFF switch that performs the same function as the
ON/OFF switch on the front of the MM Series, MM-AE Series, and MMS Series
inverter/chargers. This remote control also has LED indicators to show the
current operating mode of the inverter, to help troubleshoot you system and to
provide charging status.
This remote is recommended for the MM Series, MM-AE Series and MMS Series
inverter/chargers; such as the MM1212, MM612AE, MM1512AE, MM1524AE and MMS1012
models. This remote can also be used with the ME, MS, MS-AE, RD and RD-E Series
inverter/chargers; provided they do not require any inverter or charger
programming changes.
Easy-to-read: The large LCD screen and at-a-glance LEDs display the
inverter/charger status in a straightforward way. Soft keys give simple access
to menus and a rotary encoder knob makes it easy to quickly scroll through menus
and select settings.
Non-volatile memory: Critical settings are saved even if the power is
disconnected.
No cross platform confusion: The ME-RC remote is the same remote used on all
Magnum inverter/charger models in the ME, MS, MS-AE, RD, MM, and the MMS Series
lines.
Multiple functional settings: The Remote offers multiple functions in one
place, including: inverter on/off, charger on/off, shore power breaker settings,
AGS control, meter button, setup, and technical menus.
Adjustable settings include shore power input from 5 to 60 amps; AGS settings
for voltage, temperature, quiet time, clock, and status; inverter and charger
settings for search watts, battery bank size, battery type, charge rate, VAC
dropout, contrast, and power saver; and tech settings for battery temperature,
transformer and internal FETs, software revisions, and factory reset.
A standard 50’ 4-wire, twisted pair cable allows for plenty of room to
display the Remote with ease.
Works With:
- ME Series
- MM Series
- MM-AE Series
- MMS Series
- MS Series
- MS-AE Series
- RD Series
- RD-E Series
- MM-E Series
Features:
- Two-line LCD display screen
- Adjustable search mode 5 to 50 watts in 5 watt increments
- Low battery cutout settings: 9 to 12.2 VDC (12 volt), 18 to 24.4 VDC (24
volt), and 36 to 48.8 VDC (48 volt)
- Selectable battery bank sizes: 200 to 2500 amp-hours in 10 amp-hour
increments
- Selectable battery charge profile: Flooded, AGM1, AGM2, and GEL type
chemistries. Also includes custom voltage adjustment
- Adjustable charge rate: 0 to 100% in 10% increments
- Adjustable VAC dropout: 60 to 105 VAC
- Adjustable LCD contrast
- Factory reset: Resets to factory defaults (tech menu)
|
