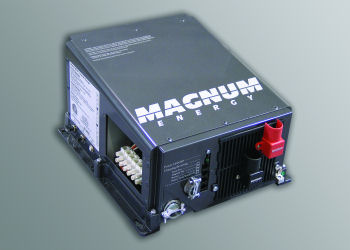

Magnum ME2012 Inverter/Charger
Reliable Mobile Power from Magnum Energy. Powerful, Easy-to-Use, & Cost
Effective.
The ME Series Inverter/Charger from Magnum Energy is a new generation
inverter designed specifically for rugged mobile applications. The ME Series is
powerful, easy-to-use, and best of all, cost effective.
Safe and reliable: The ME Series is ETL Listed to the stringent
requirements of UL/cUL 458 and CSA C22.2 #107.1-01, ensuring that the inverter
is safe and reliable.
Easy-to-install: Install the ME Series in four easy steps: simply
connect the inverter’s output to your distribution circuits or electrical panel,
connect your shore power cable (AC) to the inverter’s easy-to-reach terminal
block, connect the batteries, and switch on the power.
Features
You asked and Magnum listened. The ME Series Inverter/Charger is loaded with
features:
- Power Factor Corrected (PFC) Charger: Our PFC charger is built
into all of our inverter chargers. It uses less energy from a generator than
a standard charger – using only 15 amps per 100 amps versus 23 amps used by
standard chargers.
- Choices: The ME Series comes in three power models, allowing you
to choose the model that is right for you.
- Versatile mounting: Mount the ME Series on a shelf, bulkhead, or
even upside down.
- Lightweight: The lightweight aluminum base and cover also
provides noise reduction and corrosion resistance.
- Multiple ports: The ME Series provides multiple ports, including
an RS485 communication port for network expansion, and a remote port.
- Accessible design: The extra large AC access cover with terminal
screw block and 360° DC connection terminals with covers make this inverter
more accessible when it needs to be.
- Convenient switches: The ME Series comes with an on/off
inverter-mounted switch with an easy-to-read LED indicator.
- Expanded transfer relay: 60 Amp transfer service is available on
all models.
- Buy with ease: The ME Series is backed by a three-year (36-month)
limited warranty.
Inverter Specifications
| Input battery voltage range |
9 - 16 VDC |
| Nominal AC output voltage |
120 VAC |
| Output frequency and accuracy |
60 Hz ± 0.005% |
| 1 msec surge current (amps AC) |
60 |
| 100 msec surge current (amps AC) |
37 |
| 5 sec surge power (real watts) |
3700 |
| 30 sec surge power (real watts) |
3450 |
| 5 min surge power (real watts) |
3100 |
| 30 min surge power (real watts) |
2400 |
| Continuous power output at 45° C |
2000 VA |
| Rated input battery current |
191.0 ADC |
| Inverter efficiency (peak) |
95% |
| Transfer time |
16 msecs |
| Search mode |
.2 ADC |
| No load (120 VAC output) |
0.87 ADC |
| Waveform |
Modified Sine Wave |
Charger Specifications
| Continuous output at 45° C |
100 ADC |
| Charger efficiency |
85% |
| Power factor |
> .95 |
| Input current at rated output (AC amps) |
15 |
General Features and Capabilities
- Transfer relay capability: 2 legs at 30 A for 120 V/30 A or 240 V/60 A
service
- Five stage charging capability: Bulk, Absorb, Float, Equalize, and
Battery Saver™
- Battery temperature compensation: With available temp sensor (battery
temp 0 – 50° C)
- Remote inverter on/off switch: With available pigtail to connect to dry
contact
- Internal cooling: 0 to 120 cfm variable speed drive using dual 92mm
brushless DC fans
- Over current protection with two overlapping circuits
- Over temperature protection on transformer, MOSFETS, and battery
- Conformal coating on PCB’s for corrosion protection
- Powder coated chassis & top for corrosion protection
- Stainless steel fasteners for corrosion protection
- Series stacking interface 120/240 V
- Listings ETL Listed to UL/cUL 458, CSA C22.2 #107.1-01
Environmental Specifications
- Operating temperature: -20° C to +60° C (-4° F to 140° F)
- Nonoperating temperature: -40° C to +70° C (-40° F to 158° F)
- Operating humidity: 0 to 95% RH non condensing
Physical Specifications
- Dimensions (h x w x d): 13.75” x 12.65” x 8.0” (34.9 cm x 32.1 cm x 20.3
cm)
- Mounting: Shelf (top or bottom up) or bulkhead (vents up)
- Max operating altitude: 15,000’ (4570 m)
|
