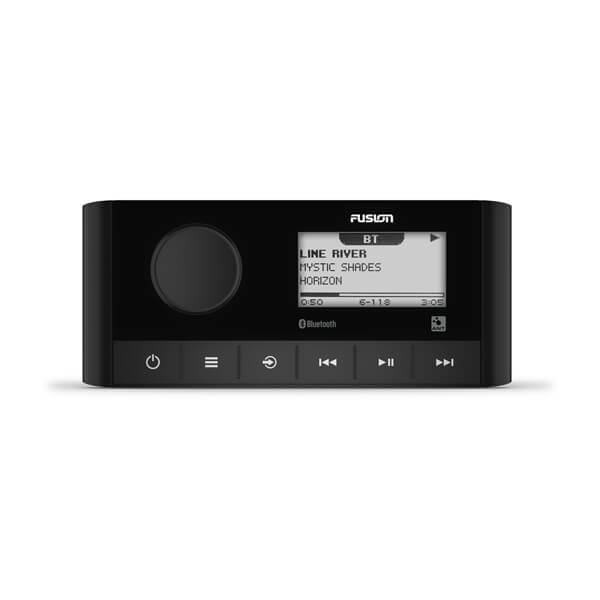

Fusion MS-RA60 Marine Stereo Model: 010-02405-00
- Bonded LCD improves durability and protection against condensation and fogging.
- Built-in Class-D amplifier delivers higher efficiency and greater output.
- Enjoy convenient over-the-air software updates via BLUETOOTH® technology from the Fusion-Link™ app1.
- Enjoy convenient over-the-air software updates via BLUETOOTH® technology from the Fusion-Link™ app1.
- Control your music from your compatible smart device or Garmin watch.
The MS-RA60 is the most economical marine stereo from Fusion yet, featuring modern aesthetics, Multi-Zone™ Technology in two zones and advanced connectivity options in a compact form factor. Designed and engineered for the harsh marine environment, the MS-RA60 stereo has an IPX6- and IPX7-rated water-resistant front panel to perform and last on board. Providing uniformity across the helm, the black front face blends seamlessly into black glass panels, complementing other electronics and MFDs for a tidy and elegant installation. The MS-RA60 is designed to fit in the MS-RA55 mounting profile, eliminating the need to alter your existing cutout, reducing complexity when upgrading your stereo system. Take advantage of the multiple source options available, including BLUETOOTH technology, DAB+ radio, AM/FM radio and AUX connection. The built-in DAB tuner supports the latest DAB and DAB+ broadcasts, allowing you to enjoy high-quality digital radio streaming wherever DAB and DAB+ are supported. Specifications
| General | | Physical dimensions (H x W x D) | 2.68" x 6.18" x 4.06" (68 x 156.9 x 103.2 mm) | | Weight | 11.1 oz (316 g) | | Water rating | IPX6 and IPX7 (front panel only, when properly installed) | | Power input | 10.8-16 VDC | | Operating temperature range | 32° to 122° F (0° to 50° C) | | Current (max.) | 15 A | | BLUETOOTH wireless range | BLUETOOTH wireless range | | ANT wireless range | Up to 10 ft (3 m) | | Wireless frequencies/protocols | Bluetooth 2.4 GHz @ +12 dBm nominal | | Compass-safe distance | 5.9" (150 mm) | | Stereo Features | | Display | 2.3" perimeter bonded monochrome dot matrix LCD | | Built-in amplifier | Class-D (minimum 4 ohm impedance) | | Peak power | 180 W | | Rated power output (4 ohm) | 22 W rms x 4 @ 14.4 V input, 4 ohm, 10% THD | | Fusion-Link™ control | yes (with compatible Apple and Android devices) | | Fusion-Link Lite control | yes (with compatible Garmin watch) | | Multi-Zone™ technology | 2 zones | | BLUETOOTH wireless technology | yes | | ANT wireless technology | yes | | DAB+ | yes (DAB tuner built in) | | Multi-language interface | Dutch/English/French/German/Italian/Spanish | | Software updates | Over-the-air software updates via BLUETOOTH wireless technology using the Fusion-Link app | | Warranty | 1 year | | Sources | | Sources | AM/FM/BLUETOOTH/AUX x1/DAB+ (available in Europe and Australia only) | | Connectivity | | Auxiliary input | One RCA input (AUX) | | AM/FM radio | One Motorola antenna connector port | | Speaker | 4 x speaker connections (2 amplified zones) | | 4 x speaker connections (2 amplified zones) | 1 zone (requires external amplification) | | Line out | Zone 1: L + R (requires external amplification) | | Subwoofer out | Zone 1 (requires external amplification) |
What's in the Box:- Fusion MS-RA60 marine stereo
- Mounting gasket
- Four 6-gauge, self-tapping screws
- Two screw covers
- Power and speaker wiring harness
- Auxiliary-in, line-out, and subwoofer-out wiring harnesses
- Documentation
|
