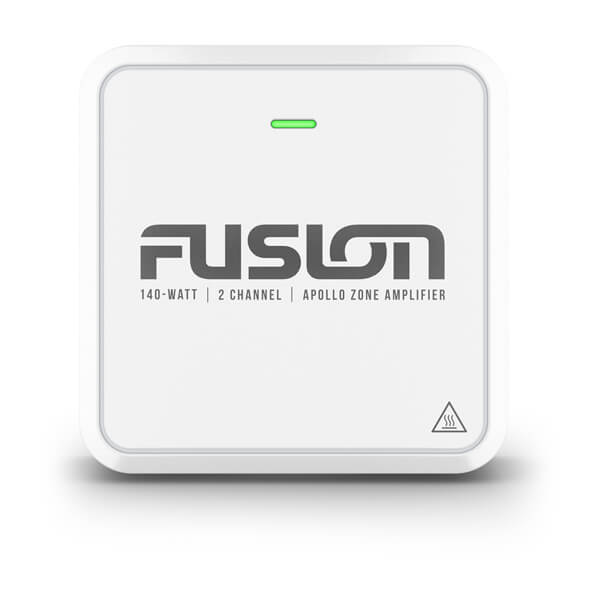

Fusion® Apollo AP-DA214 Marine Amplifiers, Zone Marine Amplifier Model: 010-02569-00
The amplifier’s circuit board has been specially coated to provide extra protection from the marine elements. Identify electrical issues at a glance. These indicator lights will show you issues with electrical currents and shorts as well as temperature. Easily install the amplifiers on board with the included mounting brackets. The amplifiers are designed to last season after season. They have been tested to a high level of protection against salt fog, temperature, vibration and UV. The compact zone amplifier provides audio zone expansion for high-quality sound in more areas on your boat. It’s compatible with 12- and 24-volt electrical systems. Note: Fusion DSP-enabled marine stereo (Apollo RA770, Apollo RA670, Apollo WB670, MS-RA210) and Fusion speakers/subwoofers required. Specifications
| Physical dimensions without bracket (LxWxH) | 3.94" x 3.94" x 1.57" (100 x 100 x 40 mm) | | Physical dimensions with bracket (LxWxH) | 3.94" x 4.53" x 1.89" (100 x 115 x 48 mm) | | Weight | 1.01 lb (460 g) | | Water Rating | IPX7 | | Amplifier class | Class-D | | CEA-2006 power rating | 20 watt RMS x 2 @ 14.4 V input - 4 ohm < 1% THD | | Total rated power output - 2 ohm (watts) | 30 watt RMS x 2 @ 14.4 V input - 2 ohm < 1% THD | | Total rated power output - 4 ohm Bridged (watts) | NA | | Peak power (watts) | 140 watts | | Input sensitivity | 0.45 V RMS | | Input impedance | 9k Ohm | | Operating voltage | 10.8 V - 32 V DC | | Current consumption (StandBy) | < 1 mA @ 14.4 V input | | Current consumption (Idle) | < 0.04 A @ 14.4 V input | | Current consumption (Max) | 10 A | | Fuse rating | 16 A electronic fuse (no replacement necessary) | | Ignition Safety Protected (SAE J1171) | Yes | | Protection circuits | Reverse voltage
Input under/over voltage
Over temperature
Output short circuit | | Operating temperature range | 32° to 122° F (0° to 50° C) |
What's in the Box:- One Apollo zone amplifier
- One mounting bracket
- Three 6-guage, self-tapping screws
- Wiring loom
- Installation instructions
- Important safety and product information (ISPI)
|
