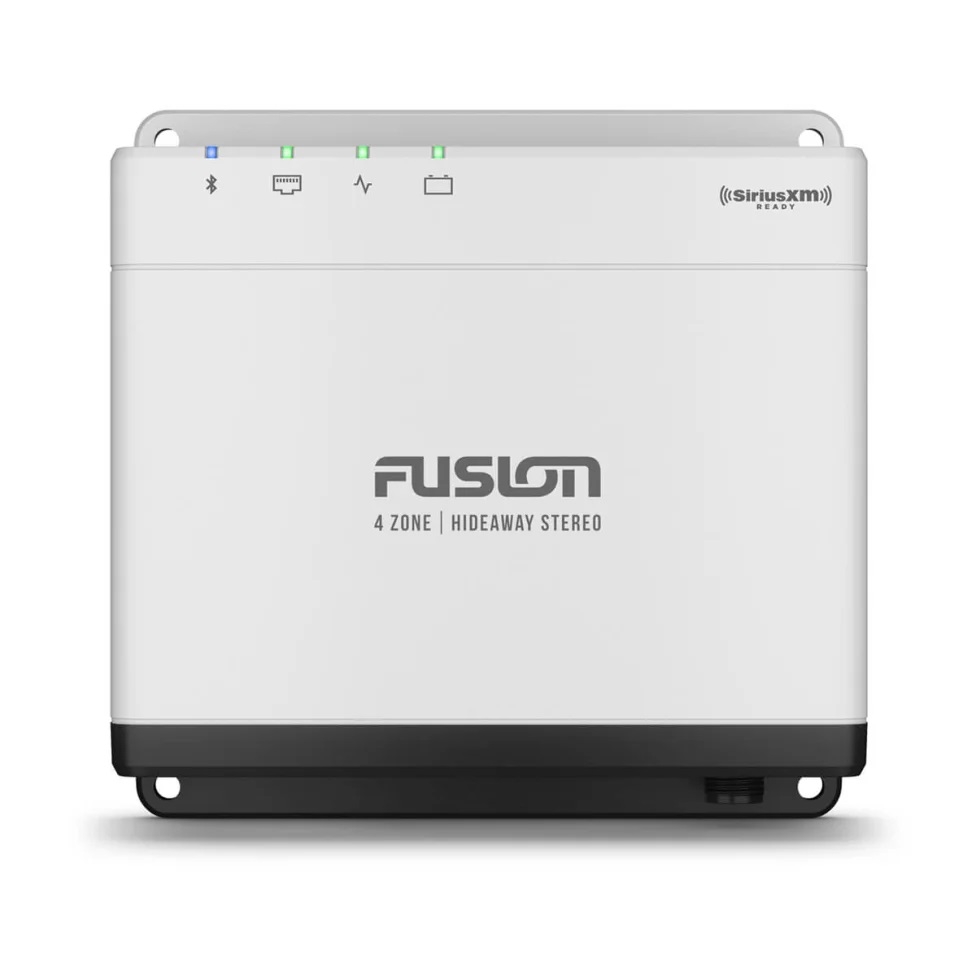

Amplify the moment, and maximize dash space with the Fusion Apollo WB675 marine hideaway stereo. This compact marine stereo offers Multi-Zone™ Technology that controls up to four separate audio zones. While the Apollo WB675 stereo is small enough to fit most helm sizes or simply be tucked out of sight with its compact design, it still offers superior quality audio. Create custom audio profiles for each zone, and control the stereo with your Fusion wired remotes and compatible Garmin MFDs or smartwatches.
| General |
| Physical dimensions (HxWxD) | 5.1" x 5.1" x 2.2" (130 x 130 x 56 mm) |
| Weight | 16.75 oz (475 g) |
| Power input | 10.8-16 VDC |
| Operating temperature range | 32-122 degrees F (0-50 degrees C) |
| Current (max) | 15 A |
| NMEA 2000® network LEN | 1 (50 mA) |
| BLUETOOTH® technology wireless range | Up to 30' (10 m) |
| ANT® connectivity wireless range | Up to 10' (3 m) |
| Wireless frequencies/protocols | BLUETOOTH 2.4 GHz @ +12 dBm nominal
ANT 2.4 GHz @ +7 dBm nominal |
| Compass-safe distance | 5.9" (150 mm) |
| Stereo Features |
| Built-in amplifier | Class-D (2 ohm stereo-stable) |
| Peak power | 280 watts |
| Built-in amplifier | Class-D (2 ohm stereo-stable) |
| Rated power output (2 ohm) | 43 watts RMS x 4 @ 14.4 V input < 10% THD |
| Rated power output (4 ohm) | 26 watts RMS x 4 @ 14.4 V input < 10% THD |
| Built-in Digital Signal Processing | yes (with preconfigured DSP profiles) |
| PartyBus™-Network capabilities | yes (wired) |
| Fusion-Link™ control | yes (with MFD, smartphone and compatible Garmin watch) |
| Multi-Zone™ technology | 4 zones |
| BLUETOOTH wireless technology | Yes |
| ANT wireless technology | Yes |
| SiriusXM® ready | Yes (requires SiriusXM Connect vehicle tuner) |
| DAB+ ready | Yes (requires DAB100A antenna module) |
| Optical audio input | Yes |
| NRX remote compatibility | Yes |
| Software updates | Over-the-air software updates via the Fusion-Link app*
USB |
| Warranty | 3 years |
| Sources |
| Sources | AM / FM / BLUETOOTH / AirPlay® 2 from Apple®* / digital optical input / USB audio / iPhone® / iPod® / AUX x1 |
| Connectivity |
| Auxiliary input | 1 |
| Optical audio input | 1 digital SPDIF port |
| Ethernet | 1 |
| NMEA 2000 | 1 |
| USB 2.0 | 1 |
| SiriusXM satellite radio | 1 (requires SiriusXM Connect vehicle tuner; does not support traffic and weather) |
| AM/FM radio | 1 Motorola antenna connector port |
| Speaker | 4 speaker connections (2 zone amplified) |
| RCA pre-out (left, right and subwoofer) | 4 zones (requires external amplification) |
| Line out | 4 (1 x L + R per zone; requires external amplification) |
| Subwoofer out | 1 mono output (requires external amplification) |
