Blue Sea Systems ML-ACR Automatic Charging Relay with Manual Control - 12V DC 500A
Model: 7622-BSS
Automatically manages the charging of two large battery banks
Allows paralleling of battery banks for emergency starting
500 Ampere continuous rating to support high-output alternators
Magnetic Latch (ML)—ACR draws very low current (<40mA to monitor terminal voltage) in the "ON" or "OFF" states, and draws moderate current for very short time when changing state
Dual sensing—senses charge on both battery banks
Start Isolation (SI)—can be configured for temporary isolation of House loads from Engine circuit during engine cranking to protect sensitive electronics
Engine Isolation (EI)—can be configured for isolation of two engines while both are running to protect engine electronics and maximize alternator output
Senses charging on two battery banks
Manual control switch provides an added level of safety allowing control with or without power, and offering LOCK OFF capability for servicing
500 Amp magnetic latching (bi-stable) relay automatically combines batteries during charging and isolates batteries when discharging and when starting engine
Specifications
Control Circuit Connection
Tinned Wire
Nominal Voltage
12V DC
Manual Control
Yes
Engine Isolation
Yes
Mounting
#10
Start Assist
Yes
Start Isolation
Yes
Amperage Operating Current
13mA
Amperage Operating Current when changing state
<7.0A
Terminal Stud Torque
140 in-lb (15.82 Nm)
Continuous Rating
500A
Intermittent Rating
700A (5 min)
Cranking Rating 30 sec
1450A DC
Minimum Operating Temperature
-10° C
Maximum Operating Temperature
60° C
Cable Size to Meet Ratings
4/0 AWG x 2
Live Current Switching
300A @ 12V DC
Stud Material
Tinned Copper
Switching Cycles
100000
Terminal Ring Diameter Clearance
Terminal Ring Diameter Clearance
Terminal Stud Length
1.50in (38.1 mm)
Terminal Stud Size
3/8" - 16 (M10)
Wire Size
20 AWG
What's in the Box:

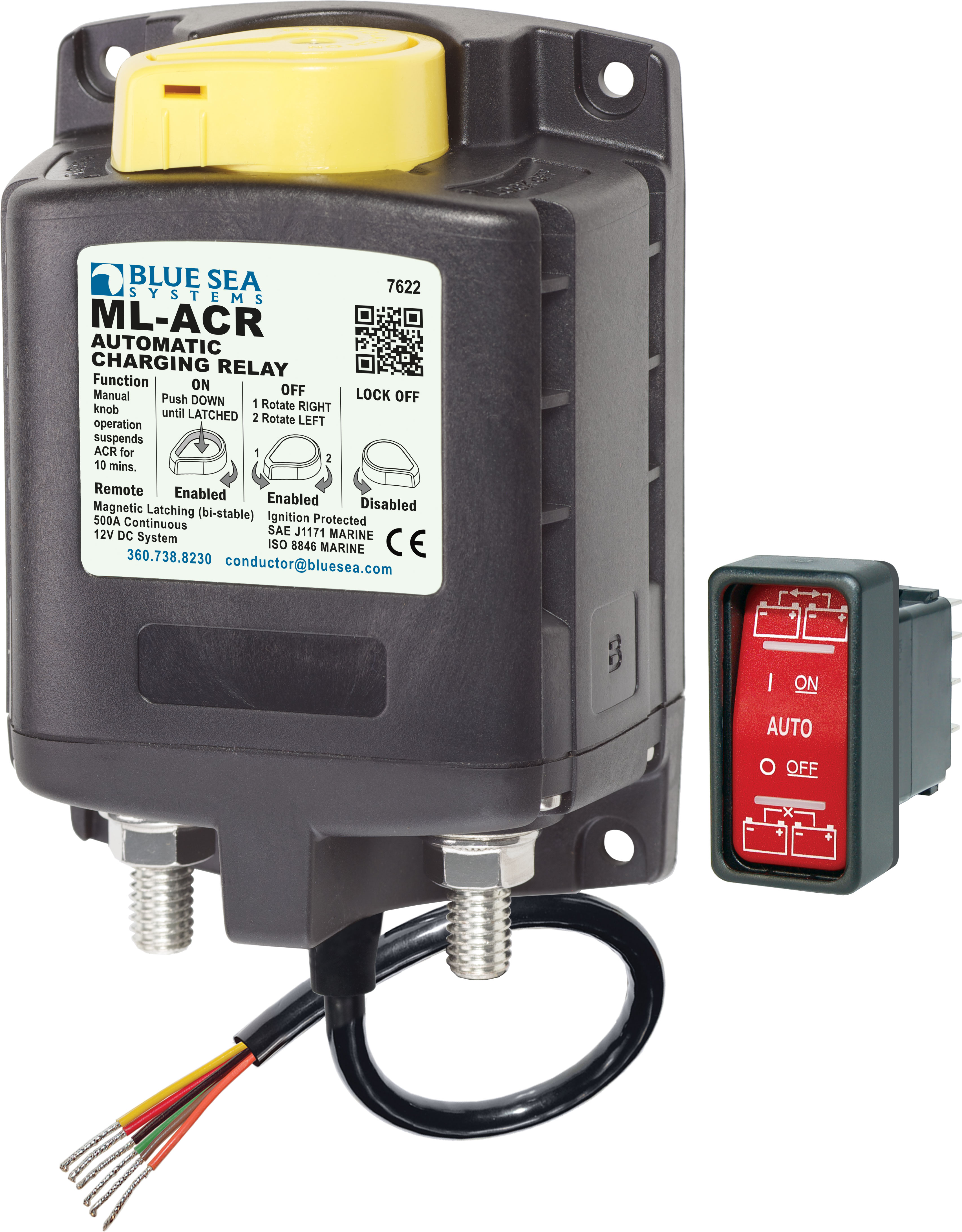

ML-ACR Automatic Charging Relay with manual Control 12v
SPDT Remote Control Contura Switch - ON-OFF-ON
